Documentation for ATIS-Draft-03-00-79

Simple Type: ADA-Access

[Table of contents]

Super-types: None
Sub-types: None
Name ADA-Access
Used by (from the same schema document) Complex Type DirectoryDetailReply , Complex Type TripConstraints
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 0 <= value <= 8
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'notAccessible'|'wheelchair'|'wheelchairAccessible'|'wheelchairLift'|'wideParking'|'blind'|'hearingImpaired'|'elevatorRequired'|'escalatorRequired'}
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Documentation values to 127 reserved for std use values 128 to 255 reserved for local use
Application Data notAccessible (0) wheelchair (1) -- a wheelchair will be required wheelchairAccessible (2) -- wide access needed wheelchairLift (3) -- provisions for stowage available wideParking (4) -- parking wide vehicles close the access point blind (5) hearingImpaired (6) elevatorRequired (7) escalatorRequired (8)

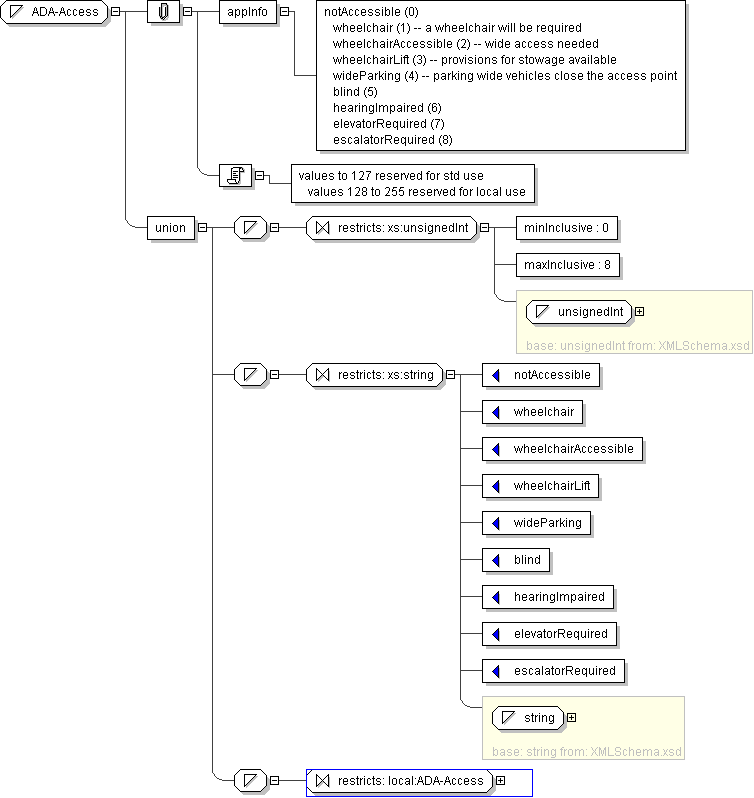

Diagram
h-1500740648
Schema Component Representation
<xs:simpleType name="ADA-Access">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="8"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="notAccessible"/>
<xs:enumeration value="wheelchair"/>
<xs:enumeration value="wheelchairAccessible"/>
<xs:enumeration value="wheelchairLift"/>
<xs:enumeration value="wideParking"/>
<xs:enumeration value="blind"/>
<xs:enumeration value="hearingImpaired"/>
<xs:enumeration value="elevatorRequired"/>
<xs:enumeration value="escalatorRequired"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:ADA-Access "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
