Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	ManeuverLocationType
Used by (from the same schema document)	Complex Type ManeuverInstruction
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 0 <= value <= 8 Locally defined type: Base XSD Type: string value comes from list: {'four wayIntersection'\|'three wayIntersection'\|'arterialRamp'\|'highwayRamp'\|'stateLine'\|'roadNameChange'\|'origin'\|'destination'\|'mergePoint'} Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Documentation	values to 127 reserved for std use values 128 to 255 reserved for local use
Application Data	four wayIntersection (0) three wayIntersection (1) arterialRamp (2) highwayRamp (3) stateLine (4) roadNameChange (5) origin (6) destination (7) mergePoint (8)

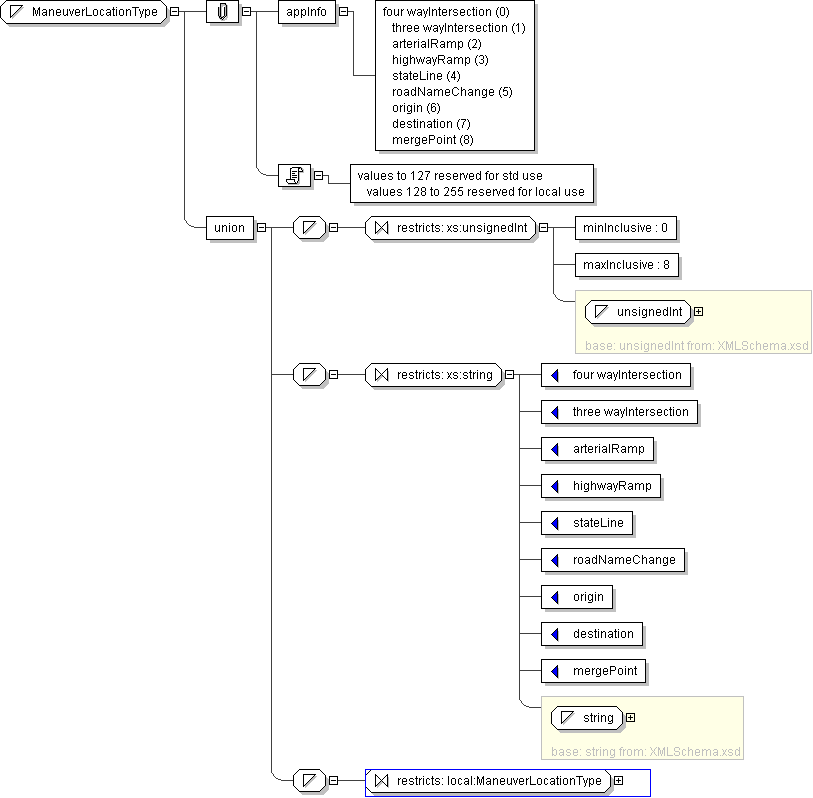

Schema Component Representation

<xs:simpleType name="ManeuverLocationType">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="8"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="four wayIntersection"/>

<xs:enumeration value="three wayIntersection"/>

<xs:enumeration value="arterialRamp"/>

<xs:enumeration value="highwayRamp"/>

<xs:enumeration value="stateLine"/>

<xs:enumeration value="roadNameChange"/>

<xs:enumeration value="origin"/>

<xs:enumeration value="destination"/>

<xs:enumeration value="mergePoint"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:ManeuverLocationType "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
