Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	LROffsetRef
Used by (from the same schema document)	Complex Type LinearReference
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 0 <= value <= 8 Locally defined type: Base XSD Type: string value comes from list: {'centerline'\|'edgeOfTravel'\|'rightOfWay'\|'curbFace'\|'curbBack'\|'edgeOfShoulder'\|'edgeOfBerm'\|'walkwayInside'\|'walkwayOutside'}
Application Data	centerline (0) edgeOfTravel (1) rightOfWay (2) curbFace (3) curbBack (4) edgeOfShoulder (5) edgeOfBerm (6) walkwayInside (7) walkwayOutside (8)

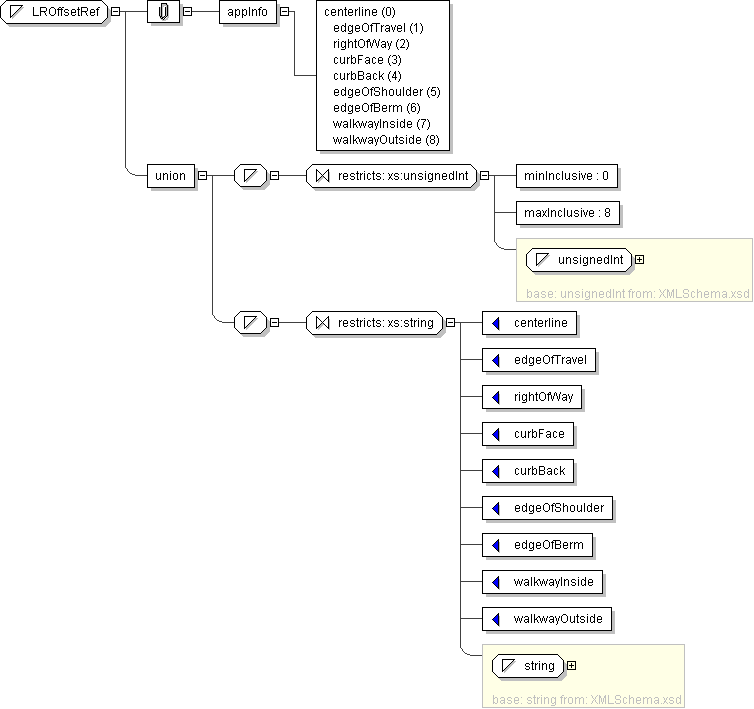

Schema Component Representation

<xs:simpleType name="LROffsetRef">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="0"/>

<xs:maxInclusive value="8"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="centerline"/>

<xs:enumeration value="edgeOfTravel"/>

<xs:enumeration value="rightOfWay"/>

<xs:enumeration value="curbFace"/>

<xs:enumeration value="curbBack"/>

<xs:enumeration value="edgeOfShoulder"/>

<xs:enumeration value="edgeOfBerm"/>

<xs:enumeration value="walkwayInside"/>

<xs:enumeration value="walkwayOutside"/>

</xs:restriction>

</xs:simpleType>

</xs:union>

</xs:simpleType>
