Documentation for ATIS-Draft-03-00-79

Simple Type: EssPrecipYesNo

[Table of contents]

Super-types:	None
Sub-types:	None

Name	EssPrecipYesNo
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 3 Locally defined type: Base XSD Type: string value comes from list: {'precip'\|'noPrecip'\|'error'}
Documentation	<Definition> Indicates whether or not moisture is detected by the sensor.</Definition> <Remarks> Used in ATIS to gross coverage area reports, not just point sensor measurements.</Remarks>
Application Data	precip (1) noPrecip (2) error (3)

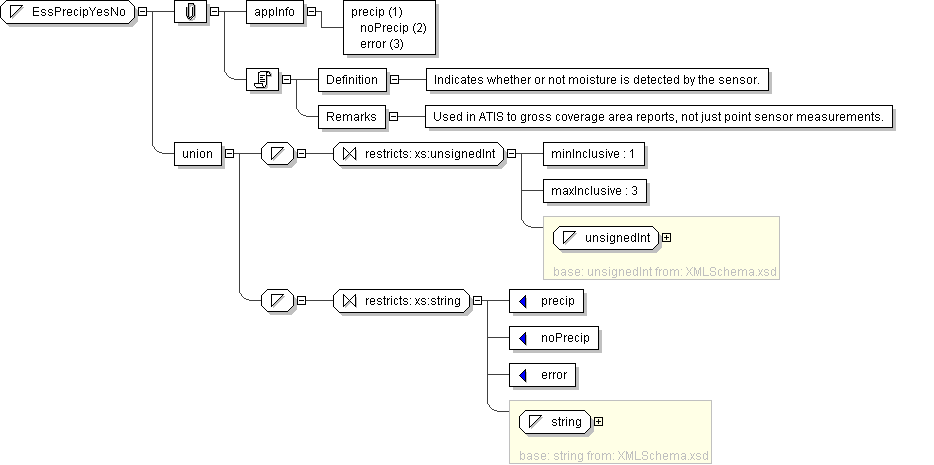

Diagram

Schema Component Representation

<xs:simpleType name="EssPrecipYesNo">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="3"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="precip"/>

<xs:enumeration value="noPrecip"/>

<xs:enumeration value="error"/>

</xs:restriction>

</xs:simpleType>

</xs:union>

</xs:simpleType>
