Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPTIntersectionIden
Used by (from the same schema document)	Complex Type ScpEventLog , Complex Type ScpEventLogSub , Complex Type TspBusinessRules , Complex Type TspPRGInputsCC , Complex Type TspPRGInputsCCSub , Complex Type TSPAllowedIntersection , Complex Type TSPEventLogEntry , Complex Type TSPIntersectionEntry , Complex Type TSPScenario5Intersection , Complex Type TSPScheduleEntry , Complex Type TSPTmsIntersectionParam
Abstract	no

XML Instance Representation

<...>

<intersection-id> TSP-TMS-IntersectionID </intersection-id> [1]

<agency-id> CPT-AgencyID </agency-id> [0..1]

<tmdd-id> tmdd:Intersection-identifier </tmdd-id> [0..1]

<name> CPT-GenericName </name> [0..1]

</...>

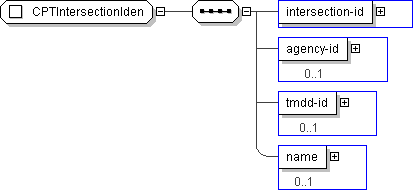

Diagram

Schema Component Representation

<xs:complexType name="CPTIntersectionIden">

<xs:sequence>

<xs:element name="intersection-id" type=" TSP-TMS-IntersectionID "/>

<xs:element name="agency-id" type=" CPT-AgencyID " minOccurs="0"/>

<xs:element name="tmdd-id" type=" tmdd:Intersection-identifier " minOccurs="0"/>

<xs:element name="name" type=" CPT-GenericName " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
