Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	FC-FareBasis
Used by (from the same schema document)	Complex Type FCFarePolicyRecord
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 8 Locally defined type: Base XSD Type: string value comes from list: {'byTrip'\|'withinZone'\|'interZone'\|'distance'\|'direction'\|'board location'\|'peak trip'\|'off peak trip'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	byTrip (1) withinZone (2) interZone (3) distance (4) direction (5) board location (6) peak trip (7) off peak trip (8) -- 9-127 reserved -- 128-255 local use

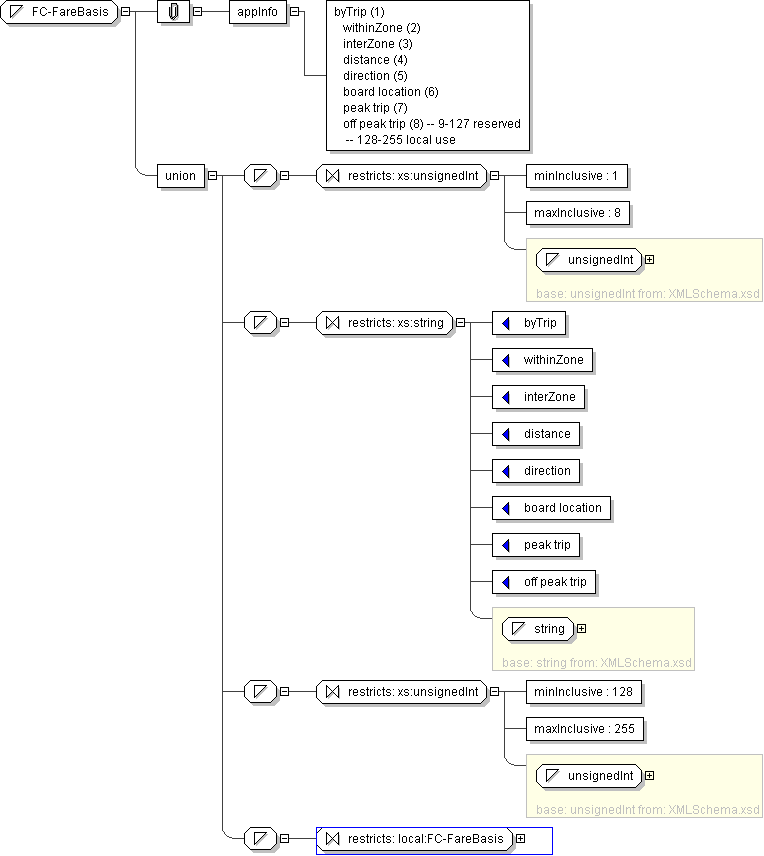

Schema Component Representation

<xs:simpleType name="FC-FareBasis">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="8"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="byTrip"/>

<xs:enumeration value="withinZone"/>

<xs:enumeration value="interZone"/>

<xs:enumeration value="distance"/>

<xs:enumeration value="direction"/>

<xs:enumeration value="board location"/>

<xs:enumeration value="peak trip"/>

<xs:enumeration value="off peak trip"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:FC-FareBasis "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
