Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CPT-DayofWeek
Used by (from the same schema document)	Complex Type SCHRoster
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 7 Locally defined type: Base XSD Type: string value comes from list: {'Sunday'\|'Monday'\|'Tuesday'\|'Wednesday'\|'Thursday'\|'Friday'\|'Saturday'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	Sunday (1) Monday (2) Tuesday (3) Wednesday (4) Thursday (5) Friday (6) Saturday (7) -- 8-127 reserved -- 128-255 local use

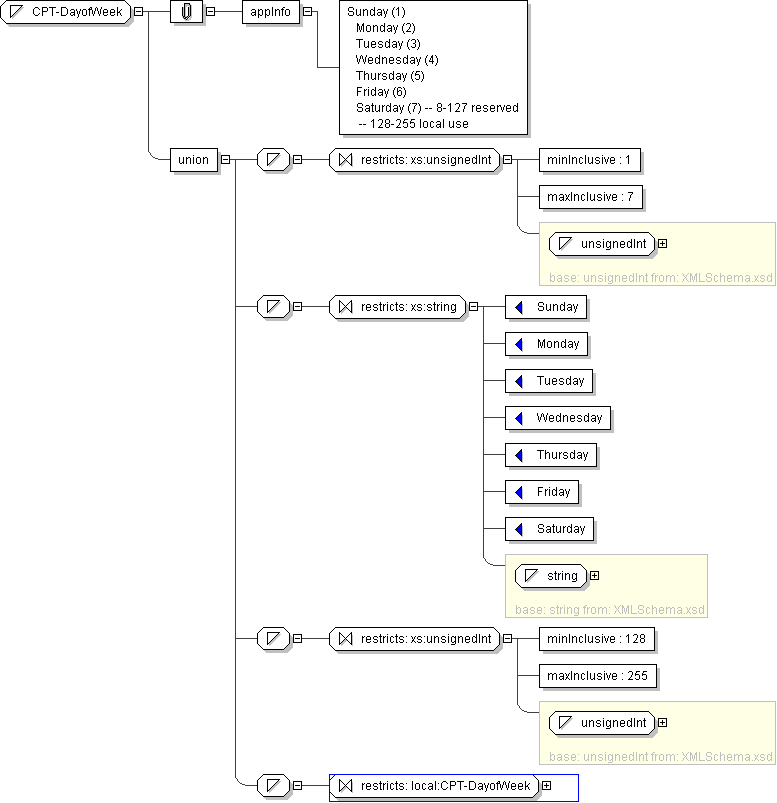

Schema Component Representation

<xs:simpleType name="CPT-DayofWeek">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="7"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="Sunday"/>

<xs:enumeration value="Monday"/>

<xs:enumeration value="Tuesday"/>

<xs:enumeration value="Wednesday"/>

<xs:enumeration value="Thursday"/>

<xs:enumeration value="Friday"/>

<xs:enumeration value="Saturday"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:CPT-DayofWeek "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
