Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	IM-CurrentStatus
Used by (from the same schema document)	Complex Type IMResponseUnit
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 6 Locally defined type: Base XSD Type: string value comes from list: {'available'\|'responding'\|'returning'\|'maintenance'\|'unavailable'\|'otherIncident'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	available (1) responding (2) returning (3) maintenance (4) unavailable (5) otherIncident (6) -- values to 127 reserved for std use -- values 128 to 255 reserved for local use

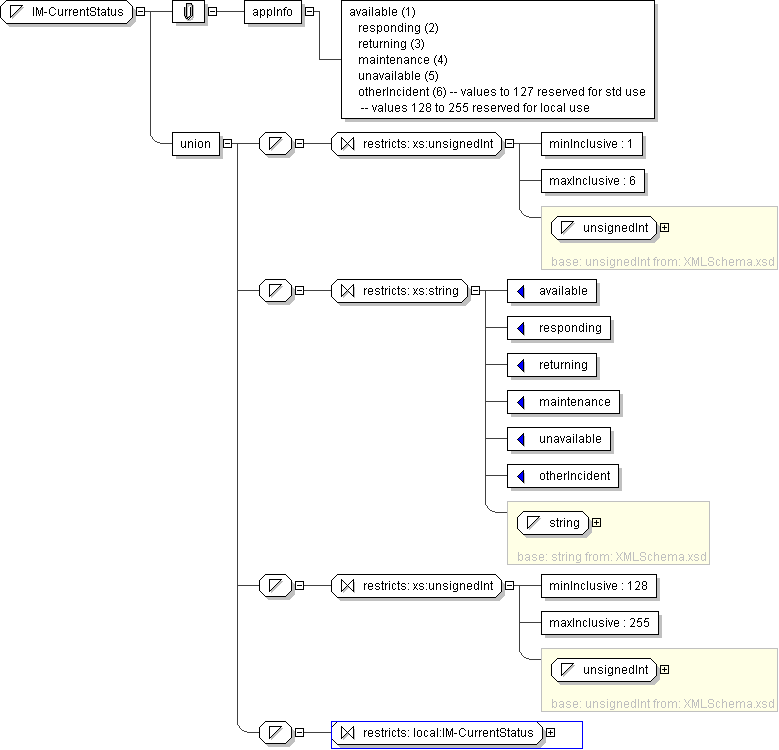

Schema Component Representation

<xs:simpleType name="IM-CurrentStatus">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="6"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="available"/>

<xs:enumeration value="responding"/>

<xs:enumeration value="returning"/>

<xs:enumeration value="maintenance"/>

<xs:enumeration value="unavailable"/>

<xs:enumeration value="otherIncident"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:IM-CurrentStatus "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
