Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	PI-ServiceStatusType
Used by (from the same schema document)	Complex Type PIServiceStatusRequest
Content	Union of following types: Locally defined type: Base XSD Type: unsignedInt 1 <= value <= 4 Locally defined type: Base XSD Type: string value comes from list: {'range'\|'countdown'\|'offSched'\|'departure'} Locally defined type: Base XSD Type: unsignedInt 128 <= value <= 255 Locally defined type: Base XSD Type: string value comes from list: {'insert-local-values-here'}
Application Data	range (1) countdown (2) offSched (3) departure (4) -- 5-127 Reserved -- 128-255 Local Use

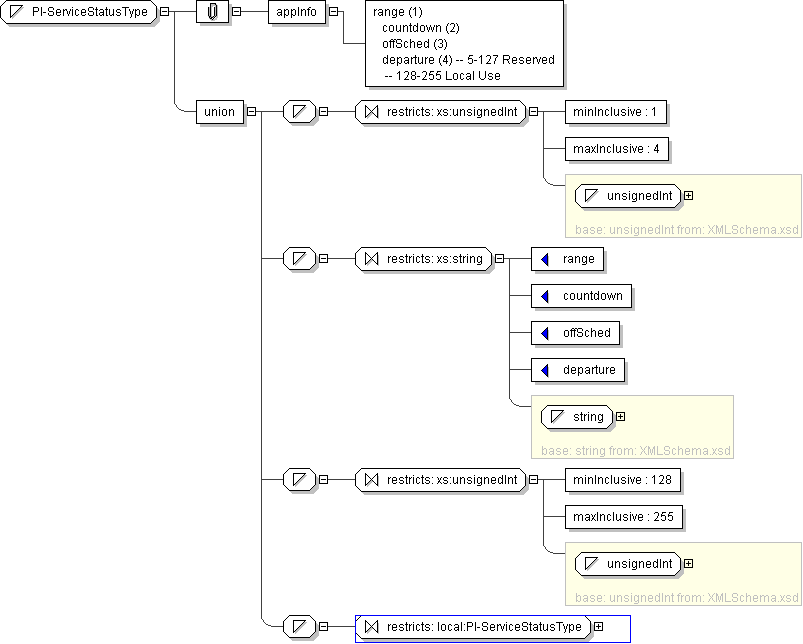

Schema Component Representation

<xs:simpleType name="PI-ServiceStatusType">

<xs:union>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="1"/>

<xs:maxInclusive value="4"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:string ">

<xs:enumeration value="range"/>

<xs:enumeration value="countdown"/>

<xs:enumeration value="offSched"/>

<xs:enumeration value="departure"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" xs:unsignedInt ">

<xs:minInclusive value="128"/>

<xs:maxInclusive value="255"/>

</xs:restriction>

</xs:simpleType>

<xs:simpleType>

<xs:restriction base=" local:PI-ServiceStatusType "/>

</xs:simpleType>

</xs:union>

</xs:simpleType>
