complexType AlaCarte

diagram
namespace	http://www.DSRC-Draft-03-00-24
children	valueCnt1 items1 valueCnt2 items2 localAlaCarte
used by	element  alaCarte
source	<xs:complexType name="AlaCarte">   <xs:sequence>     <xs:element name="valueCnt1">       <xs:simpleType>         <xs:restriction base="xs:unsignedByte">           <xs:maxInclusive value="32"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="items1">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="32">           <xs:element name="items1-item">             <xs:complexType>               <xs:sequence>                 <xs:element name="tag" type="StdTagList"/>                 <xs:element name="value" type="ValueList"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="valueCnt2">       <xs:simpleType>         <xs:restriction base="xs:unsignedByte">           <xs:maxInclusive value="32"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="items2">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="32">           <xs:element name="items2-item">             <xs:complexType>               <xs:sequence>                 <xs:element name="tag" type="TwoByteTagList"/>                 <xs:element name="data">                   <xs:complexType>                     <xs:choice>                       <xs:element name="payload" type="Payload"/>                       <xs:element name="value" type="ValueList"/>                     </xs:choice>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localAlaCarte" type="local:AlaCarte" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element AlaCarte/valueCnt1

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 content  simple
facets	maxInclusive  32
source	<xs:element name="valueCnt1">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte">       <xs:maxInclusive value="32"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AlaCarte/items1

diagram
properties	isRef  0 content  complex
children	items1-item
source	<xs:element name="items1">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="32">       <xs:element name="items1-item">         <xs:complexType>           <xs:sequence>             <xs:element name="tag" type="StdTagList"/>             <xs:element name="value" type="ValueList"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AlaCarte/items1/items1-item

diagram
properties	isRef  0 content  complex
children	tag value
source	<xs:element name="items1-item">   <xs:complexType>     <xs:sequence>       <xs:element name="tag" type="StdTagList"/>       <xs:element name="value" type="ValueList"/>     </xs:sequence>   </xs:complexType> </xs:element>

element AlaCarte/items1/items1-item/tag

diagram
type	StdTagList
properties	isRef  0 content  simple
source	<xs:element name="tag" type="StdTagList"/>

element AlaCarte/items1/items1-item/value

diagram
type	ValueList

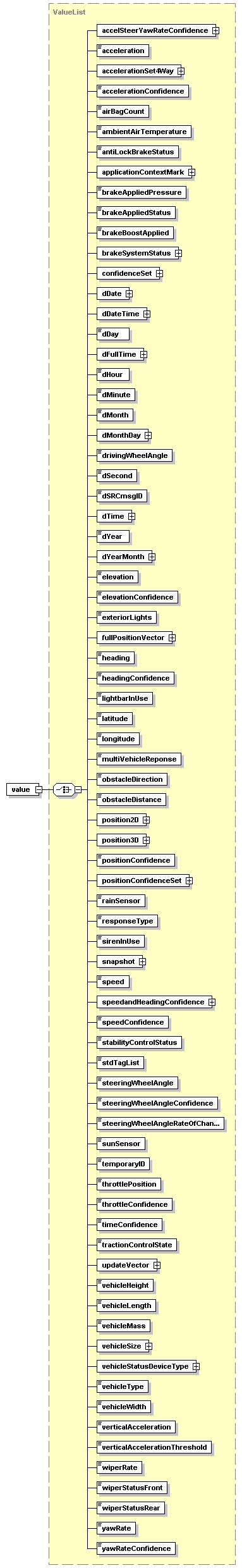

properties	isRef  0 content  complex
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatusFront wiperStatusRear yawRate yawRateConfidence
source	<xs:element name="value" type="ValueList"/>

element AlaCarte/valueCnt2

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 content  simple
facets	maxInclusive  32
source	<xs:element name="valueCnt2">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte">       <xs:maxInclusive value="32"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element AlaCarte/items2

diagram
properties	isRef  0 content  complex
children	items2-item
source	<xs:element name="items2">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="32">       <xs:element name="items2-item">         <xs:complexType>           <xs:sequence>             <xs:element name="tag" type="TwoByteTagList"/>             <xs:element name="data">               <xs:complexType>                 <xs:choice>                   <xs:element name="payload" type="Payload"/>                   <xs:element name="value" type="ValueList"/>                 </xs:choice>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AlaCarte/items2/items2-item

diagram
properties	isRef  0 content  complex
children	tag data
source	<xs:element name="items2-item">   <xs:complexType>     <xs:sequence>       <xs:element name="tag" type="TwoByteTagList"/>       <xs:element name="data">         <xs:complexType>           <xs:choice>             <xs:element name="payload" type="Payload"/>             <xs:element name="value" type="ValueList"/>           </xs:choice>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element AlaCarte/items2/items2-item/tag

diagram
type	TwoByteTagList
properties	isRef  0 content  simple
source	<xs:element name="tag" type="TwoByteTagList"/>

element AlaCarte/items2/items2-item/data

diagram
properties	isRef  0 content  complex
children	payload value
source	<xs:element name="data">   <xs:complexType>     <xs:choice>       <xs:element name="payload" type="Payload"/>       <xs:element name="value" type="ValueList"/>     </xs:choice>   </xs:complexType> </xs:element>

element AlaCarte/items2/items2-item/data/payload

diagram
type	Payload
properties	isRef  0 content  complex
facets	minLength  2 maxLength  86
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="payload" type="Payload"/>

element AlaCarte/items2/items2-item/data/value

diagram
type	ValueList
properties	isRef  0 content  complex
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatusFront wiperStatusRear yawRate yawRateConfidence
source	<xs:element name="value" type="ValueList"/>

element AlaCarte/localAlaCarte

diagram
type	local:AlaCarte
properties	isRef  0 minOcc  0 maxOcc  1
source	<xs:element name="localAlaCarte" type="local:AlaCarte" minOccurs="0"/>
