complexType ApproachObject
diagram Docs_p53.png
namespace http://www.DSRC-Draft-03-00-24
children refPoint config approaches egresses
used by
element Intersection/approachs/approach
source <xs:complexType name="ApproachObject">
  <xs:sequence>
    <xs:element name="refPoint" type="ReferencePoint" minOccurs="0"/>
    <xs:element name="config" type="NodeConfig" minOccurs="0"/>
    <xs:element name="approaches" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="32">
          <xs:element name="approache" type="Approach"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="egresses" minOccurs="0">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="egresse" type="Approach"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element ApproachObject/refPoint
diagram Docs_p54.png
type ReferencePoint
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children lat long elev
source <xs:element name="refPoint" type="ReferencePoint" minOccurs="0"/>

element ApproachObject/config
diagram Docs_p55.png
type NodeConfig
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="config" type="NodeConfig" minOccurs="0"/>

element ApproachObject/approaches
diagram Docs_p56.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children approache
source <xs:element name="approaches" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="32">
      <xs:element name="approache" type="Approach"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ApproachObject/approaches/approache

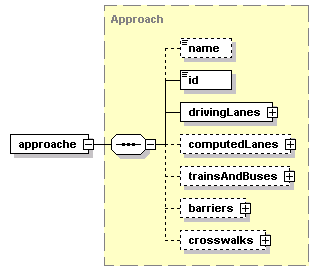

diagram Docs_p57.png
type Approach
properties
isRef 0
content complex
children name id drivingLanes computedLanes trainsAndBuses barriers crosswalks
source <xs:element name="approache" type="Approach"/>

element ApproachObject/egresses
diagram Docs_p58.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children egresse
source <xs:element name="egresses" minOccurs="0">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="egresse" type="Approach"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element ApproachObject/egresses/egresse

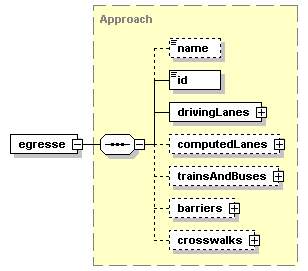

diagram Docs_p59.png
type Approach
properties
isRef 0
content complex
children name id drivingLanes computedLanes trainsAndBuses barriers crosswalks
source <xs:element name="egresse" type="Approach"/>
