complexType BarrierLane

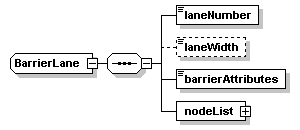

diagram Docs_p60.png
namespace http://www.DSRC-Draft-03-00-24
children laneNumber laneWidth barrierAttributes nodeList
used by
element Approach/barriers/barrier
source <xs:complexType name="BarrierLane">
  <xs:sequence>
    <xs:element name="laneNumber" type="LaneNumber"/>
    <xs:element name="laneWidth" type="LaneWidth" minOccurs="0"/>
    <xs:element name="barrierAttributes" type="BarrierAttributes"/>
    <xs:element name="nodeList" type="NodeList"/>
  </xs:sequence>
</xs:complexType>

element BarrierLane/laneNumber
diagram Docs_p61.png
type LaneNumber
properties
isRef 0
content simple
source <xs:element name="laneNumber" type="LaneNumber"/>

element BarrierLane/laneWidth
diagram Docs_p62.png
type LaneWidth
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="laneWidth" type="LaneWidth" minOccurs="0"/>

element BarrierLane/barrierAttributes
diagram Docs_p63.png
type BarrierAttributes
properties
isRef 0
content simple
source <xs:element name="barrierAttributes" type="BarrierAttributes"/>

element BarrierLane/nodeList
diagram Docs_p64.png
type NodeList
properties
isRef 0
content complex
children node
source <xs:element name="nodeList" type="NodeList"/>
