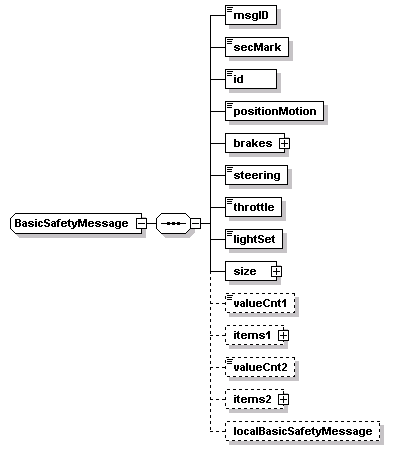

complexType BasicSafetyMessage

diagram
namespace	http://www.DSRC-Draft-03-00-24
children	msgID secMark id positionMotion brakes steering throttle lightSet size valueCnt1 items1 valueCnt2 items2 localBasicSafetyMessage
used by	element  basicSafetyMessage
source	<xs:complexType name="BasicSafetyMessage">   <xs:sequence>     <xs:element name="msgID" type="DSRCmsgID"/>     <xs:element name="secMark" type="DSecond"/>     <xs:element name="id" type="TemporaryID"/>     <xs:element name="positionMotion" type="PositionMotionBlob"/>     <xs:element name="brakes" type="BrakeSystemStatus"/>     <xs:element name="steering" type="SteeringWheelAngle"/>     <xs:element name="throttle" type="ThrottlePosition"/>     <xs:element name="lightSet" type="ExteriorLights"/>     <xs:element name="size" type="VehicleSize"/>     <xs:element name="valueCnt1" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:unsignedByte">           <xs:maxInclusive value="32"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="items1" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="32">           <xs:element name="items1-item">             <xs:complexType>               <xs:sequence>                 <xs:element name="value" type="ValueList"/>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="valueCnt2" minOccurs="0">       <xs:simpleType>         <xs:restriction base="xs:unsignedByte">           <xs:maxInclusive value="32"/>         </xs:restriction>       </xs:simpleType>     </xs:element>     <xs:element name="items2" minOccurs="0">       <xs:complexType>         <xs:sequence minOccurs="0" maxOccurs="32">           <xs:element name="items2-item">             <xs:complexType>               <xs:sequence>                 <xs:element name="data">                   <xs:complexType>                     <xs:choice>                       <xs:element name="payload" type="Payload"/>                       <xs:element name="value" type="ValueList"/>                     </xs:choice>                   </xs:complexType>                 </xs:element>               </xs:sequence>             </xs:complexType>           </xs:element>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localBasicSafetyMessage" type="local:BasicSafetyMessage" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element BasicSafetyMessage/msgID

diagram
type	DSRCmsgID
properties	isRef  0 content  simple
source	<xs:element name="msgID" type="DSRCmsgID"/>

element BasicSafetyMessage/secMark

diagram
type	DSecond
properties	isRef  0 content  simple
source	<xs:element name="secMark" type="DSecond"/>

element BasicSafetyMessage/id

diagram
type	TemporaryID
properties	isRef  0 content  complex
facets	length  8
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="id" type="TemporaryID"/>

element BasicSafetyMessage/positionMotion

diagram
type	PositionMotionBlob
properties	isRef  0 content  complex
facets	length  28
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="positionMotion" type="PositionMotionBlob"/>

element BasicSafetyMessage/brakes

diagram
type	BrakeSystemStatus
properties	isRef  0 content  complex
children	wheelBrakes traction abs
source	<xs:element name="brakes" type="BrakeSystemStatus"/>

element BasicSafetyMessage/steering

diagram
type	SteeringWheelAngle
properties	isRef  0 content  simple
facets	minInclusive  -32767 maxInclusive  32768
source	<xs:element name="steering" type="SteeringWheelAngle"/>

element BasicSafetyMessage/throttle

diagram
type	ThrottlePosition
properties	isRef  0 content  simple
facets	maxInclusive  200
source	<xs:element name="throttle" type="ThrottlePosition"/>

element BasicSafetyMessage/lightSet

diagram
type	ExteriorLights
properties	isRef  0 content  simple
source	<xs:element name="lightSet" type="ExteriorLights"/>

element BasicSafetyMessage/size

diagram
type	VehicleSize
properties	isRef  0 content  complex
children	width length
source	<xs:element name="size" type="VehicleSize"/>

element BasicSafetyMessage/valueCnt1

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  32
source	<xs:element name="valueCnt1" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte">       <xs:maxInclusive value="32"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BasicSafetyMessage/items1

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	items1-item
source	<xs:element name="items1" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="32">       <xs:element name="items1-item">         <xs:complexType>           <xs:sequence>             <xs:element name="value" type="ValueList"/>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element BasicSafetyMessage/items1/items1-item

diagram
properties	isRef  0 content  complex
children	value
source	<xs:element name="items1-item">   <xs:complexType>     <xs:sequence>       <xs:element name="value" type="ValueList"/>     </xs:sequence>   </xs:complexType> </xs:element>

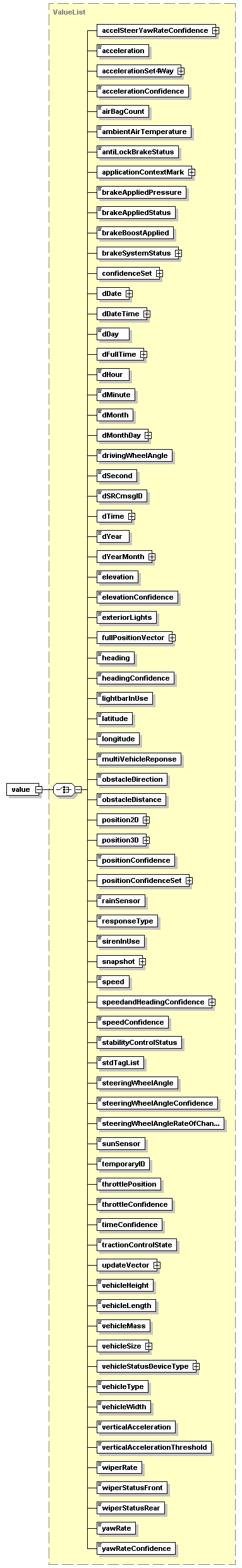

element BasicSafetyMessage/items1/items1-item/value

diagram
type	ValueList
properties	isRef  0 content  complex
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatusFront wiperStatusRear yawRate yawRateConfidence
source	<xs:element name="value" type="ValueList"/>

element BasicSafetyMessage/valueCnt2

diagram
type	restriction of xs:unsignedByte
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxInclusive  32
source	<xs:element name="valueCnt2" minOccurs="0">   <xs:simpleType>     <xs:restriction base="xs:unsignedByte">       <xs:maxInclusive value="32"/>     </xs:restriction>   </xs:simpleType> </xs:element>

element BasicSafetyMessage/items2

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	items2-item
source	<xs:element name="items2" minOccurs="0">   <xs:complexType>     <xs:sequence minOccurs="0" maxOccurs="32">       <xs:element name="items2-item">         <xs:complexType>           <xs:sequence>             <xs:element name="data">               <xs:complexType>                 <xs:choice>                   <xs:element name="payload" type="Payload"/>                   <xs:element name="value" type="ValueList"/>                 </xs:choice>               </xs:complexType>             </xs:element>           </xs:sequence>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element BasicSafetyMessage/items2/items2-item

diagram
properties	isRef  0 content  complex
children	data
source	<xs:element name="items2-item">   <xs:complexType>     <xs:sequence>       <xs:element name="data">         <xs:complexType>           <xs:choice>             <xs:element name="payload" type="Payload"/>             <xs:element name="value" type="ValueList"/>           </xs:choice>         </xs:complexType>       </xs:element>     </xs:sequence>   </xs:complexType> </xs:element>

element BasicSafetyMessage/items2/items2-item/data

diagram
properties	isRef  0 content  complex
children	payload value
source	<xs:element name="data">   <xs:complexType>     <xs:choice>       <xs:element name="payload" type="Payload"/>       <xs:element name="value" type="ValueList"/>     </xs:choice>   </xs:complexType> </xs:element>

element BasicSafetyMessage/items2/items2-item/data/payload

diagram
type	Payload
properties	isRef  0 content  complex
facets	minLength  2 maxLength  86
attributes	Name   Type   Use   Default   Fixed   annotation EncodingType derived by: xs:NMTOKEN required
source	<xs:element name="payload" type="Payload"/>

element BasicSafetyMessage/items2/items2-item/data/value

diagram
type	ValueList
properties	isRef  0 content  complex
children	accelSteerYawRateConfidence acceleration accelerationSet4Way accelerationConfidence airBagCount ambientAirTemperature antiLockBrakeStatus applicationContextMark brakeAppliedPressure brakeAppliedStatus brakeBoostApplied brakeSystemStatus confidenceSet dDate dDateTime dDay dFullTime dHour dMinute dMonth dMonthDay drivingWheelAngle dSecond dSRCmsgID dTime dYear dYearMonth elevation elevationConfidence exteriorLights fullPositionVector heading headingConfidence lightbarInUse latitude longitude multiVehicleReponse obstacleDirection obstacleDistance position2D position3D positionConfidence positionConfidenceSet rainSensor responseType sirenInUse snapshot speed speedandHeadingConfidence speedConfidence stabilityControlStatus stdTagList steeringWheelAngle steeringWheelAngleConfidence steeringWheelAngleRateOfChange sunSensor temporaryID throttlePosition throttleConfidence timeConfidence tractionControlState updateVector vehicleHeight vehicleLength vehicleMass vehicleSize vehicleStatusDeviceType vehicleType vehicleWidth verticalAcceleration verticalAccelerationThreshold wiperRate wiperStatusFront wiperStatusRear yawRate yawRateConfidence
source	<xs:element name="value" type="ValueList"/>

element BasicSafetyMessage/localBasicSafetyMessage

diagram
type	local:BasicSafetyMessage
properties	isRef  0 minOcc  0 maxOcc  1
source	<xs:element name="localBasicSafetyMessage" type="local:BasicSafetyMessage" minOccurs="0"/>
