complexType CommonSafetyRequest

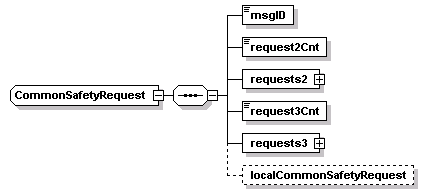

diagram Docs_p100.png
namespace http://www.DSRC-Draft-03-00-24
children msgID request2Cnt requests2 request3Cnt requests3 localCommonSafetyRequest
used by
element commonSafetyRequest
source <xs:complexType name="CommonSafetyRequest">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <xs:element name="request2Cnt">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="requests2">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="requests2-item" type="StdTagList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="request3Cnt">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="requests3">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="requests3-item" type="TwoByteTagList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCommonSafetyRequest" type="local:CommonSafetyRequest" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element CommonSafetyRequest/msgID
diagram Docs_p101.png
type DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element CommonSafetyRequest/request2Cnt
diagram Docs_p102.png
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 32
source <xs:element name="request2Cnt">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CommonSafetyRequest/requests2
diagram Docs_p103.png
properties
isRef 0
content complex
children requests2-item
source <xs:element name="requests2">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="requests2-item" type="StdTagList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element CommonSafetyRequest/requests2/requests2-item
diagram Docs_p104.png
type StdTagList
properties
isRef 0
content simple
source <xs:element name="requests2-item" type="StdTagList"/>

element CommonSafetyRequest/request3Cnt
diagram Docs_p105.png
type restriction of xs:unsignedByte
properties
isRef 0
content simple
facets
maxInclusive 32
source <xs:element name="request3Cnt">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element CommonSafetyRequest/requests3
diagram Docs_p106.png
properties
isRef 0
content complex
children requests3-item
source <xs:element name="requests3">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="requests3-item" type="TwoByteTagList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element CommonSafetyRequest/requests3/requests3-item
diagram Docs_p107.png
type TwoByteTagList
properties
isRef 0
content simple
source <xs:element name="requests3-item" type="TwoByteTagList"/>

element CommonSafetyRequest/localCommonSafetyRequest
diagram Docs_p108.png
type local:CommonSafetyRequest
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localCommonSafetyRequest" type="local:CommonSafetyRequest" minOccurs="0"/>
