complexType CrosswalkLane

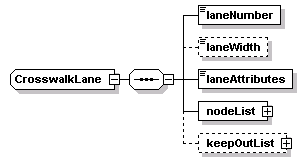

diagram Docs_p116.png
namespace http://www.DSRC-Draft-03-00-24
children laneNumber laneWidth laneAttributes nodeList keepOutList
used by
element Approach/crosswalks/crosswalk
source <xs:complexType name="CrosswalkLane">
  <xs:sequence>
    <xs:element name="laneNumber" type="LaneNumber"/>
    <xs:element name="laneWidth" type="LaneWidth" minOccurs="0"/>
    <xs:element name="laneAttributes" type="CrosswalkLaneAttributes"/>
    <xs:element name="nodeList" type="NodeList"/>
    <xs:element name="keepOutList" type="NodeList" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element CrosswalkLane/laneNumber
diagram Docs_p117.png
type LaneNumber
properties
isRef 0
content simple
source <xs:element name="laneNumber" type="LaneNumber"/>

element CrosswalkLane/laneWidth
diagram Docs_p118.png
type LaneWidth
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="laneWidth" type="LaneWidth" minOccurs="0"/>

element CrosswalkLane/laneAttributes
diagram Docs_p119.png
type CrosswalkLaneAttributes
properties
isRef 0
content simple
source <xs:element name="laneAttributes" type="CrosswalkLaneAttributes"/>

element CrosswalkLane/nodeList
diagram Docs_p120.png
type NodeList
properties
isRef 0
content complex
children node
source <xs:element name="nodeList" type="NodeList"/>

element CrosswalkLane/keepOutList
diagram Docs_p121.png
type NodeList
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children node
source <xs:element name="keepOutList" type="NodeList" minOccurs="0"/>
