complexType EmergencyVehicleAlert

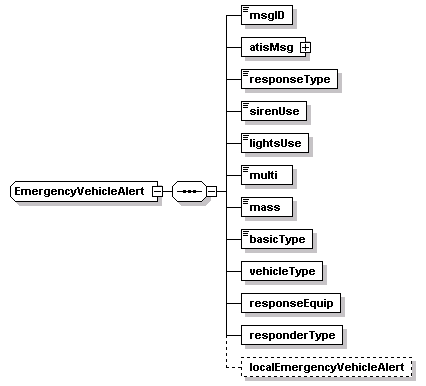

diagram Docs_p149.png
namespace http://www.DSRC-Draft-03-00-24
children msgID atisMsg responseType sirenUse lightsUse multi mass basicType vehicleType responseEquip responderType localEmergencyVehicleAlert
used by
element emergencyVehicleAlert
source <xs:complexType name="EmergencyVehicleAlert">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <xs:element name="atisMsg" type="atis:RoadSideAlert"/>
    <xs:element name="responseType" type="ResponseType"/>
    <xs:element name="sirenUse" type="SirenInUse"/>
    <xs:element name="lightsUse" type="LightbarInUse"/>
    <xs:element name="multi" type="MultiVehicleReponse"/>
    <xs:element name="mass" type="VehicleMass"/>
    <xs:element name="basicType" type="VehicleType"/>
    <xs:element name="vehicleType" type="itis:VehicleGroupAffected"/>
    <xs:element name="responseEquip" type="itis:IncidentResponseEquipment"/>
    <xs:element name="responderType" type="itis:ResponderGroupAffected"/>
    <xs:element name="localEmergencyVehicleAlert" type="local:EmergencyVehicleAlert" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element EmergencyVehicleAlert/msgID
diagram Docs_p150.png
type DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element EmergencyVehicleAlert/atisMsg
diagram Docs_p151.png
type atis:RoadSideAlert
properties
isRef 0
content complex
children typeEvent description priority extent spaceVector furtherInfoID
source <xs:element name="atisMsg" type="atis:RoadSideAlert"/>

element EmergencyVehicleAlert/responseType
diagram Docs_p152.png
type ResponseType
properties
isRef 0
content simple
source <xs:element name="responseType" type="ResponseType"/>

element EmergencyVehicleAlert/sirenUse
diagram Docs_p153.png
type SirenInUse
properties
isRef 0
content simple
source <xs:element name="sirenUse" type="SirenInUse"/>

element EmergencyVehicleAlert/lightsUse
diagram Docs_p154.png
type LightbarInUse
properties
isRef 0
content simple
source <xs:element name="lightsUse" type="LightbarInUse"/>

element EmergencyVehicleAlert/multi
diagram Docs_p155.png
type MultiVehicleReponse
properties
isRef 0
content simple
source <xs:element name="multi" type="MultiVehicleReponse"/>

element EmergencyVehicleAlert/mass
diagram Docs_p156.png
type VehicleMass
properties
isRef 0
content simple
source <xs:element name="mass" type="VehicleMass"/>

element EmergencyVehicleAlert/basicType
diagram Docs_p157.png
type VehicleType
properties
isRef 0
content simple
source <xs:element name="basicType" type="VehicleType"/>

element EmergencyVehicleAlert/vehicleType
diagram Docs_p158.png
type itis:VehicleGroupAffected
properties
isRef 0
source <xs:element name="vehicleType" type="itis:VehicleGroupAffected"/>

element EmergencyVehicleAlert/responseEquip
diagram Docs_p159.png
type itis:IncidentResponseEquipment
properties
isRef 0
source <xs:element name="responseEquip" type="itis:IncidentResponseEquipment"/>

element EmergencyVehicleAlert/responderType
diagram Docs_p160.png
type itis:ResponderGroupAffected
properties
isRef 0
source <xs:element name="responderType" type="itis:ResponderGroupAffected"/>

element EmergencyVehicleAlert/localEmergencyVehicleAlert
diagram Docs_p161.png
type local:EmergencyVehicleAlert
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localEmergencyVehicleAlert" type="local:EmergencyVehicleAlert" minOccurs="0"/>
