complexType MapFragment

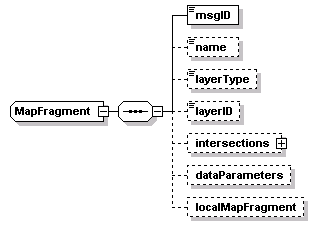

diagram Docs_p205.png
namespace http://www.DSRC-Draft-03-00-24
children msgID name layerType layerID intersections dataParameters localMapFragment
used by
element mapFragment
source <xs:complexType name="MapFragment">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <xs:element name="name" type="DescriptiveName" minOccurs="0"/>
    <xs:element name="layerType" type="LayerType" minOccurs="0"/>
    <xs:element name="layerID" type="LayerID" minOccurs="0"/>
    <xs:element name="intersections" minOccurs="0">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="32">
          <xs:element name="intersection" type="Intersection"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="dataParameters" type="DataParameters" minOccurs="0"/>
    <xs:element name="localMapFragment" type="local:MapFragment" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element MapFragment/msgID
diagram Docs_p206.png
type DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element MapFragment/name
diagram Docs_p207.png
type DescriptiveName
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 63
source <xs:element name="name" type="DescriptiveName" minOccurs="0"/>

element MapFragment/layerType
diagram Docs_p208.png
type LayerType
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="layerType" type="LayerType" minOccurs="0"/>

element MapFragment/layerID
diagram Docs_p209.png
type LayerID
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="layerID" type="LayerID" minOccurs="0"/>

element MapFragment/intersections
diagram Docs_p210.png
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children intersection
source <xs:element name="intersections" minOccurs="0">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="32">
      <xs:element name="intersection" type="Intersection"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element MapFragment/intersections/intersection
diagram Docs_p211.png
type Intersection
properties
isRef 0
content complex
children name id refPoint config approachs
source <xs:element name="intersection" type="Intersection"/>

element MapFragment/dataParameters
diagram Docs_p212.png
type DataParameters
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="dataParameters" type="DataParameters" minOccurs="0"/>

element MapFragment/localMapFragment
diagram Docs_p213.png
type local:MapFragment
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localMapFragment" type="local:MapFragment" minOccurs="0"/>
