complexType PreemptionState

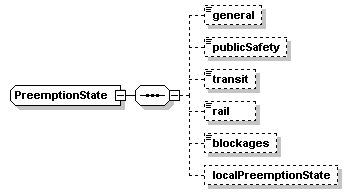

diagram Docs_p267.png
namespace http://www.DSRC-Draft-03-00-24
children general publicSafety transit rail blockages localPreemptionState
used by
element SPAT/premept
source <xs:complexType name="PreemptionState">
  <xs:sequence>
    <xs:element name="general" type="PreEmptionStateGeneral" minOccurs="0"/>
    <xs:element name="publicSafety" type="PublicSafetyVehicleApproaching" minOccurs="0"/>
    <xs:element name="transit" type="TransitPreEmptionRequest" minOccurs="0"/>
    <xs:element name="rail" type="HighPriorityFreightTrainAlarm" minOccurs="0"/>
    <xs:element name="blockages" type="VehicleStoppedInIntersection" minOccurs="0"/>
    <xs:element name="localPreemptionState" type="local:PreemptionState" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element PreemptionState/general
diagram Docs_p268.png
type PreEmptionStateGeneral
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="general" type="PreEmptionStateGeneral" minOccurs="0"/>

element PreemptionState/publicSafety
diagram Docs_p269.png
type PublicSafetyVehicleApproaching
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="publicSafety" type="PublicSafetyVehicleApproaching" minOccurs="0"/>

element PreemptionState/transit
diagram Docs_p270.png
type TransitPreEmptionRequest
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="transit" type="TransitPreEmptionRequest" minOccurs="0"/>

element PreemptionState/rail
diagram Docs_p271.png
type HighPriorityFreightTrainAlarm
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="rail" type="HighPriorityFreightTrainAlarm" minOccurs="0"/>

element PreemptionState/blockages
diagram Docs_p272.png
type VehicleStoppedInIntersection
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="blockages" type="VehicleStoppedInIntersection" minOccurs="0"/>

element PreemptionState/localPreemptionState
diagram Docs_p273.png
type local:PreemptionState
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localPreemptionState" type="local:PreemptionState" minOccurs="0"/>
