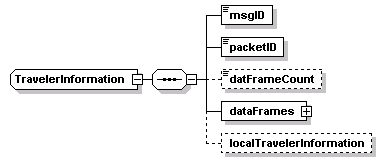

complexType TravelerInformation
diagram Docs_p372.png
namespace http://www.DSRC-Draft-03-00-24
children msgID packetID datFrameCount dataFrames localTravelerInformation
source <xs:complexType name="TravelerInformation">
  <xs:sequence>
    <xs:element name="msgID" type="DSRCmsgID"/>
    <xs:element name="packetID" type="UniqueMSGID"/>
    <xs:element name="datFrameCount" minOccurs="0">
      <xs:simpleType>
        <xs:restriction base="xs:unsignedByte">
          <xs:minInclusive value="1"/>
          <xs:maxInclusive value="32"/>
        </xs:restriction>
      </xs:simpleType>
    </xs:element>
    <xs:element name="dataFrames">
      <xs:complexType>
        <xs:sequence maxOccurs="8">
          <xs:element name="dataFrame">
            <xs:complexType>
              <xs:sequence>
                <xs:element name="frameType" type="TravelerInfoType"/>
                <xs:element name="msgId">
                  <xs:complexType>
                    <xs:choice>
                      <xs:element name="advisoryNumber" type="ATISAdvisoryNumber"/>
                      <xs:element name="roadSignID" type="RoadSignID"/>
                    </xs:choice>
                  </xs:complexType>
                </xs:element>
                <xs:element name="startYear" type="DYear" minOccurs="0"/>
                <xs:element name="startTime" type="MinuteOfTheYear"/>
                <xs:element name="duratonTime" type="MinutesDuration"/>
                <xs:element name="priority" type="SignPrority"/>
                <xs:element name="regions">
                  <xs:complexType>
                    <xs:sequence maxOccurs="8">
                      <xs:element name="region" type="ValidRegions"/>
                    </xs:sequence>
                  </xs:complexType>
                </xs:element>
                <xs:choice>
                  <xs:element name="advisory" type="TBD"/>
                  <xs:element name="workZone" type="WorkZone"/>
                  <xs:element name="genericSign" type="GenericSignage"/>
                  <xs:element name="speedLimit" type="SpeedLimit"/>
                  <xs:element name="exitService" type="ExitService"/>
                </xs:choice>
                <xs:element name="url" type="URL-Short" minOccurs="0"/>
                <xs:element name="link" type="LRMS" minOccurs="0"/>
              </xs:sequence>
            </xs:complexType>
          </xs:element>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localTravelerInformation" type="local:TravelerInformation" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element TravelerInformation/msgID
diagram Docs_p373.png
type DSRCmsgID
properties
isRef 0
content simple
source <xs:element name="msgID" type="DSRCmsgID"/>

element TravelerInformation/packetID
diagram Docs_p374.png
type UniqueMSGID
properties
isRef 0
content simple
facets
maxInclusive 1000000
source <xs:element name="packetID" type="UniqueMSGID"/>

element TravelerInformation/datFrameCount
diagram Docs_p375.png
type restriction of xs:unsignedByte
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 32
source <xs:element name="datFrameCount" minOccurs="0">
  <xs:simpleType>
    <xs:restriction base="xs:unsignedByte">
      <xs:minInclusive value="1"/>
      <xs:maxInclusive value="32"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

element TravelerInformation/dataFrames
diagram Docs_p376.png
properties
isRef 0
content complex
children dataFrame
source <xs:element name="dataFrames">
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="dataFrame">
        <xs:complexType>
          <xs:sequence>
            <xs:element name="frameType" type="TravelerInfoType"/>
            <xs:element name="msgId">
              <xs:complexType>
                <xs:choice>
                  <xs:element name="advisoryNumber" type="ATISAdvisoryNumber"/>
                  <xs:element name="roadSignID" type="RoadSignID"/>
                </xs:choice>
              </xs:complexType>
            </xs:element>
            <xs:element name="startYear" type="DYear" minOccurs="0"/>
            <xs:element name="startTime" type="MinuteOfTheYear"/>
            <xs:element name="duratonTime" type="MinutesDuration"/>
            <xs:element name="priority" type="SignPrority"/>
            <xs:element name="regions">
              <xs:complexType>
                <xs:sequence maxOccurs="8">
                  <xs:element name="region" type="ValidRegions"/>
                </xs:sequence>
              </xs:complexType>
            </xs:element>
            <xs:choice>
              <xs:element name="advisory" type="TBD"/>
              <xs:element name="workZone" type="WorkZone"/>
              <xs:element name="genericSign" type="GenericSignage"/>
              <xs:element name="speedLimit" type="SpeedLimit"/>
              <xs:element name="exitService" type="ExitService"/>
            </xs:choice>
            <xs:element name="url" type="URL-Short" minOccurs="0"/>
            <xs:element name="link" type="LRMS" minOccurs="0"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

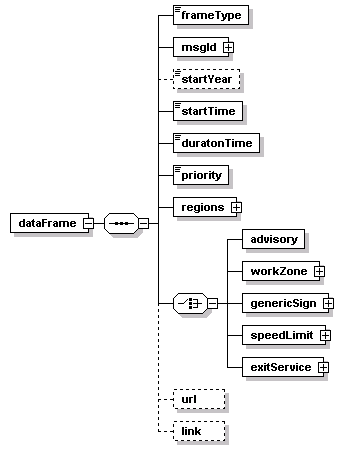

element TravelerInformation/dataFrames/dataFrame
diagram Docs_p377.png
properties
isRef 0
content complex
children frameType msgId startYear startTime duratonTime priority regions advisory workZone genericSign speedLimit exitService url link
source <xs:element name="dataFrame">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="frameType" type="TravelerInfoType"/>
      <xs:element name="msgId">
        <xs:complexType>
          <xs:choice>
            <xs:element name="advisoryNumber" type="ATISAdvisoryNumber"/>
            <xs:element name="roadSignID" type="RoadSignID"/>
          </xs:choice>
        </xs:complexType>
      </xs:element>
      <xs:element name="startYear" type="DYear" minOccurs="0"/>
      <xs:element name="startTime" type="MinuteOfTheYear"/>
      <xs:element name="duratonTime" type="MinutesDuration"/>
      <xs:element name="priority" type="SignPrority"/>
      <xs:element name="regions">
        <xs:complexType>
          <xs:sequence maxOccurs="8">
            <xs:element name="region" type="ValidRegions"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:choice>
        <xs:element name="advisory" type="TBD"/>
        <xs:element name="workZone" type="WorkZone"/>
        <xs:element name="genericSign" type="GenericSignage"/>
        <xs:element name="speedLimit" type="SpeedLimit"/>
        <xs:element name="exitService" type="ExitService"/>
      </xs:choice>
      <xs:element name="url" type="URL-Short" minOccurs="0"/>
      <xs:element name="link" type="LRMS" minOccurs="0"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TravelerInformation/dataFrames/dataFrame/frameType
diagram Docs_p378.png
type TravelerInfoType
properties
isRef 0
content simple
source <xs:element name="frameType" type="TravelerInfoType"/>

element TravelerInformation/dataFrames/dataFrame/msgId
diagram Docs_p379.png
properties
isRef 0
content complex
children advisoryNumber roadSignID
source <xs:element name="msgId">
  <xs:complexType>
    <xs:choice>
      <xs:element name="advisoryNumber" type="ATISAdvisoryNumber"/>
      <xs:element name="roadSignID" type="RoadSignID"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

element TravelerInformation/dataFrames/dataFrame/msgId/advisoryNumber
diagram Docs_p380.png
type ATISAdvisoryNumber
properties
isRef 0
content simple
facets
maxInclusive 1000000
source <xs:element name="advisoryNumber" type="ATISAdvisoryNumber"/>

element TravelerInformation/dataFrames/dataFrame/msgId/roadSignID
diagram Docs_p381.png
type RoadSignID
properties
isRef 0
content complex
children position viewAngle mutcdCodee crc
source <xs:element name="roadSignID" type="RoadSignID"/>

element TravelerInformation/dataFrames/dataFrame/startYear
diagram Docs_p382.png
type DYear
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 9999
source <xs:element name="startYear" type="DYear" minOccurs="0"/>

element TravelerInformation/dataFrames/dataFrame/startTime
diagram Docs_p383.png
type MinuteOfTheYear
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 525600
source <xs:element name="startTime" type="MinuteOfTheYear"/>

element TravelerInformation/dataFrames/dataFrame/duratonTime
diagram Docs_p384.png
type MinutesDuration
properties
isRef 0
content simple
facets
maxInclusive 65000
source <xs:element name="duratonTime" type="MinutesDuration"/>

element TravelerInformation/dataFrames/dataFrame/priority
diagram Docs_p385.png
type SignPrority
properties
isRef 0
content simple
source <xs:element name="priority" type="SignPrority"/>

element TravelerInformation/dataFrames/dataFrame/regions
diagram Docs_p386.png
properties
isRef 0
content complex
children region
source <xs:element name="regions">
  <xs:complexType>
    <xs:sequence maxOccurs="8">
      <xs:element name="region" type="ValidRegions"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TravelerInformation/dataFrames/dataFrame/regions/region
diagram Docs_p387.png
type ValidRegions
properties
isRef 0
source <xs:element name="region" type="ValidRegions"/>

element TravelerInformation/dataFrames/dataFrame/advisory
diagram Docs_p388.png
type TBD
properties
isRef 0
source <xs:element name="advisory" type="TBD"/>

element TravelerInformation/dataFrames/dataFrame/workZone
diagram Docs_p389.png
type WorkZone
properties
isRef 0
content complex
children workZone-item
source <xs:element name="workZone" type="WorkZone"/>

element TravelerInformation/dataFrames/dataFrame/genericSign
diagram Docs_p390.png
type GenericSignage
properties
isRef 0
content complex
children genericSignage-item
source <xs:element name="genericSign" type="GenericSignage"/>

element TravelerInformation/dataFrames/dataFrame/speedLimit
diagram Docs_p391.png
type SpeedLimit
properties
isRef 0
content complex
children speedLimit-item
source <xs:element name="speedLimit" type="SpeedLimit"/>

element TravelerInformation/dataFrames/dataFrame/exitService
diagram Docs_p392.png
type ExitService
properties
isRef 0
content complex
children exitService-item
source <xs:element name="exitService" type="ExitService"/>

element TravelerInformation/dataFrames/dataFrame/url
diagram Docs_p393.png
type URL-Short
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="url" type="URL-Short" minOccurs="0"/>

element TravelerInformation/dataFrames/dataFrame/link
diagram Docs_p394.png
type LRMS
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="link" type="LRMS" minOccurs="0"/>

element TravelerInformation/localTravelerInformation
diagram Docs_p395.png
type local:TravelerInformation
properties
isRef 0
minOcc 0
maxOcc 1
source <xs:element name="localTravelerInformation" type="local:TravelerInformation" minOccurs="0"/>
