complexType ActionLog

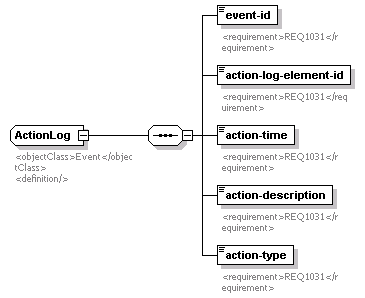

diagram
namespace http://www.ite.org/tmdd
children event-id action-log-element-id action-time action-description action-type
used by
element actionLog
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="ActionLog">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="event-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1031</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="action-log-element-id" type="Event-action-log-element-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1031</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="action-time" type="DateTimeZone">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1031</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="action-description" type="Event-description-notes-and-comments">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1031</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="action-type" type="Event-action-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1031</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element ActionLog/event-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ1031</requirement>
source <xs:element name="event-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1031</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ActionLog/action-log-element-id
diagram
type Event-action-log-element-identifier
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 999
annotation
documentation
<requirement>REQ1031</requirement>
source <xs:element name="action-log-element-id" type="Event-action-log-element-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1031</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ActionLog/action-time
diagram
type DateTimeZone
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ1031</requirement>
source <xs:element name="action-time" type="DateTimeZone">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1031</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ActionLog/action-description
diagram
type Event-description-notes-and-comments
properties
isRef 0
content simple
facets
minLength 1
maxLength 2048
annotation
documentation
<requirement>REQ1031</requirement>
source <xs:element name="action-description" type="Event-description-notes-and-comments">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1031</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ActionLog/action-type
diagram
type Event-action-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ1031</requirement>
source <xs:element name="action-type" type="Event-action-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1031</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
