complexType DataIncidentDetails

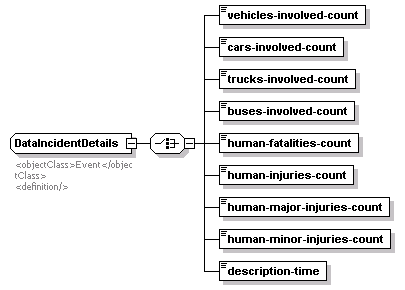

diagram
namespace	http://www.ite.org/tmdd
children	vehicles-involved-count cars-involved-count trucks-involved-count buses-involved-count human-fatalities-count human-injuries-count human-major-injuries-count human-minor-injuries-count description-time
used by	element  EventQuantity/incident-details
annotation	documentation <objectClass>Event</objectClass> <definition/>
source	<xs:complexType name="DataIncidentDetails">   <xs:annotation>     <xs:documentation>       <objectClass>Event</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:choice>     <xs:element name="vehicles-involved-count" type="Event-incident-vehicles-involved-count"/>     <xs:element name="cars-involved-count" type="Event-incident-vehicles-involved-count"/>     <xs:element name="trucks-involved-count" type="Event-incident-vehicles-involved-count"/>     <xs:element name="buses-involved-count" type="Event-incident-vehicles-involved-count"/>     <xs:element name="human-fatalities-count" type="Event-incident-humans-involved-count"/>     <xs:element name="human-injuries-count" type="Event-incident-humans-involved-count"/>     <xs:element name="human-major-injuries-count" type="Event-incident-humans-involved-count"/>     <xs:element name="human-minor-injuries-count" type="Event-incident-humans-involved-count"/>     <xs:element name="description-time" type="Event-description-time"/>   </xs:choice> </xs:complexType>

element DataIncidentDetails/vehicles-involved-count

diagram
type	Event-incident-vehicles-involved-count
properties	isRef  0 content  simple
source	<xs:element name="vehicles-involved-count" type="Event-incident-vehicles-involved-count"/>

element DataIncidentDetails/cars-involved-count

diagram
type	Event-incident-vehicles-involved-count
properties	isRef  0 content  simple
source	<xs:element name="cars-involved-count" type="Event-incident-vehicles-involved-count"/>

element DataIncidentDetails/trucks-involved-count

diagram
type	Event-incident-vehicles-involved-count
properties	isRef  0 content  simple
source	<xs:element name="trucks-involved-count" type="Event-incident-vehicles-involved-count"/>

element DataIncidentDetails/buses-involved-count

diagram
type	Event-incident-vehicles-involved-count
properties	isRef  0 content  simple
source	<xs:element name="buses-involved-count" type="Event-incident-vehicles-involved-count"/>

element DataIncidentDetails/human-fatalities-count

diagram
type	Event-incident-humans-involved-count
properties	isRef  0 content  simple
source	<xs:element name="human-fatalities-count" type="Event-incident-humans-involved-count"/>

element DataIncidentDetails/human-injuries-count

diagram
type	Event-incident-humans-involved-count
properties	isRef  0 content  simple
source	<xs:element name="human-injuries-count" type="Event-incident-humans-involved-count"/>

element DataIncidentDetails/human-major-injuries-count

diagram
type	Event-incident-humans-involved-count
properties	isRef  0 content  simple
source	<xs:element name="human-major-injuries-count" type="Event-incident-humans-involved-count"/>

element DataIncidentDetails/human-minor-injuries-count

diagram
type	Event-incident-humans-involved-count
properties	isRef  0 content  simple
source	<xs:element name="human-minor-injuries-count" type="Event-incident-humans-involved-count"/>

element DataIncidentDetails/description-time

diagram
type	Event-description-time
properties	isRef  0 content  simple
facets	minInclusive  -1234567 maxInclusive  -1234567
source	<xs:element name="description-time" type="Event-description-time"/>
