complexType DetectorDetails

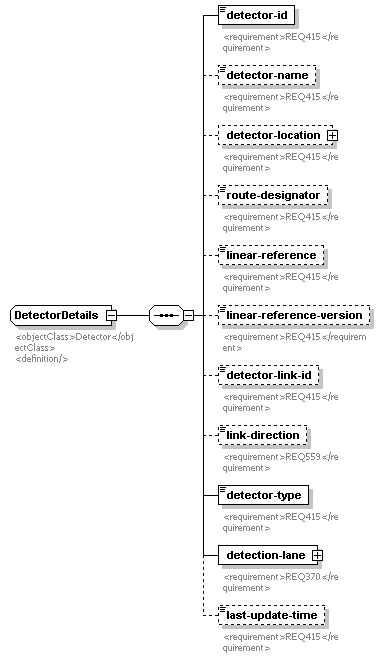

diagram
namespace http://www.ite.org/tmdd
children detector-id detector-name detector-location route-designator linear-reference linear-reference-version detector-link-id link-direction detector-type detection-lane last-update-time
used by
element DetectorInventory/detector-list/detector
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DetectorDetails">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="detector-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-location" type="lrms:GeoLocation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="route-designator" type="Link-route-designator" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-link-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-direction" type="Link-direction" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ559</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-type" type="Detector-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detection-lane">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ370</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="detection-lane-item" type="DetectionLane"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ415</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DetectorDetails/detector-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="detector-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/detector-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/detector-location

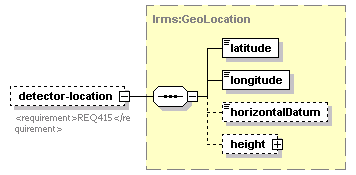

diagram
type lrms:GeoLocation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children latitude longitude horizontalDatum height
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="detector-location" type="lrms:GeoLocation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/route-designator
diagram
type Link-route-designator
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 64
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="route-designator" type="Link-route-designator" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/linear-reference
diagram
type Link-location-linear-reference
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 0
maxInclusive 2000000
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/linear-reference-version
diagram
type Link-location-linear-reference-version
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="linear-reference-version" type="Link-location-linear-reference-version" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/detector-link-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="detector-link-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/link-direction
diagram
type Link-direction
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ559</requirement>
source <xs:element name="link-direction" type="Link-direction" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ559</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/detector-type
diagram
type Detector-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="detector-type" type="Detector-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorDetails/detection-lane
diagram
properties
isRef 0
content complex
children detection-lane-item
annotation
documentation
<requirement>REQ370</requirement>
source <xs:element name="detection-lane">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ370</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="detection-lane-item" type="DetectionLane"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DetectorDetails/detection-lane/detection-lane-item

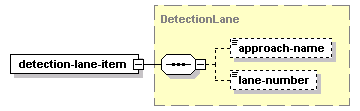

diagram
type DetectionLane
properties
isRef 0
content complex
children approach-name lane-number
source <xs:element name="detection-lane-item" type="DetectionLane"/>

element DetectorDetails/last-update-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ415</requirement>
source <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ415</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
