complexType DetectorInventoryList

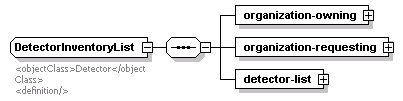

diagram
namespace http://www.ite.org/tmdd
children organization-owning organization-requesting detector-list
used by
element DetectorInformationRequest/detector-inventory-list
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DetectorInventoryList">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-owning" type="OrganizationInformation"/>
    <xs:element name="organization-requesting" type="OrganizationInformation"/>
    <xs:element name="detector-list">
      <xs:complexType>
        <xs:sequence minOccurs="0" maxOccurs="10000">
          <xs:element name="detector" type="DetectorList"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DetectorInventoryList/organization-owning
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="organization-owning" type="OrganizationInformation"/>

element DetectorInventoryList/organization-requesting

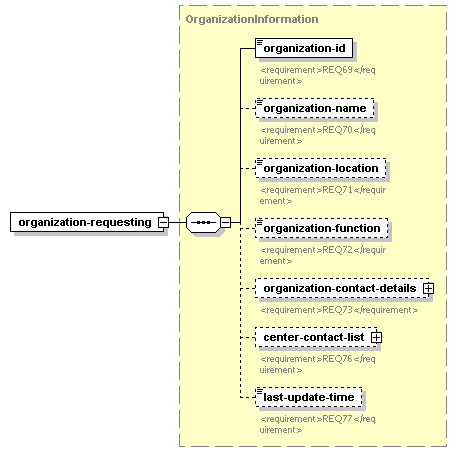

diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="organization-requesting" type="OrganizationInformation"/>

element DetectorInventoryList/detector-list
diagram
properties
isRef 0
content complex
children detector
source <xs:element name="detector-list">
  <xs:complexType>
    <xs:sequence minOccurs="0" maxOccurs="10000">
      <xs:element name="detector" type="DetectorList"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DetectorInventoryList/detector-list/detector
diagram
type DetectorList
properties
isRef 0
content complex
children detector-id detector-name
source <xs:element name="detector" type="DetectorList"/>
