complexType DetectorReport

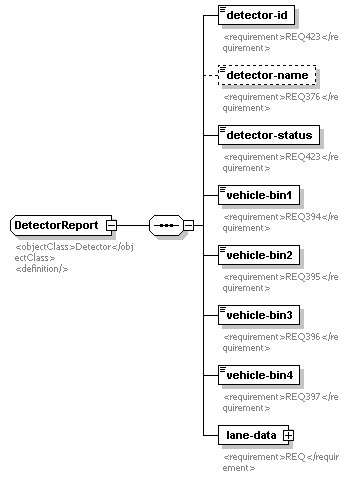

diagram
namespace http://www.ite.org/tmdd
children detector-id detector-name detector-status vehicle-bin1 vehicle-bin2 vehicle-bin3 vehicle-bin4 lane-data
used by
element DataCollectionPeriod/detector-reports/detector-report
annotation
documentation
<objectClass>Detector</objectClass>
<definition/>
source <xs:complexType name="DetectorReport">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Detector</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="detector-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ423</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ376</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="detector-status" type="Detector-status">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ423</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vehicle-bin1" type="Link-restriction-length">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ394</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vehicle-bin2" type="Link-restriction-length">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ395</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vehicle-bin3" type="Link-restriction-length">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ396</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="vehicle-bin4" type="Link-restriction-length">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ397</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lane-data">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="1024">
          <xs:element name="lane-data-item" type="LaneData"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element DetectorReport/detector-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ423</requirement>
source <xs:element name="detector-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ423</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/detector-name
diagram
type Organization-resource-name
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ376</requirement>
source <xs:element name="detector-name" type="Organization-resource-name" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ376</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/detector-status
diagram
type Detector-status
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ423</requirement>
source <xs:element name="detector-status" type="Detector-status">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ423</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/vehicle-bin1
diagram
type Link-restriction-length
properties
isRef 0
content simple
facets
maxInclusive 6000
annotation
documentation
<requirement>REQ394</requirement>
source <xs:element name="vehicle-bin1" type="Link-restriction-length">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ394</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/vehicle-bin2
diagram
type Link-restriction-length
properties
isRef 0
content simple
facets
maxInclusive 6000
annotation
documentation
<requirement>REQ395</requirement>
source <xs:element name="vehicle-bin2" type="Link-restriction-length">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ395</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/vehicle-bin3
diagram
type Link-restriction-length
properties
isRef 0
content simple
facets
maxInclusive 6000
annotation
documentation
<requirement>REQ396</requirement>
source <xs:element name="vehicle-bin3" type="Link-restriction-length">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ396</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/vehicle-bin4
diagram
type Link-restriction-length
properties
isRef 0
content simple
facets
maxInclusive 6000
annotation
documentation
<requirement>REQ397</requirement>
source <xs:element name="vehicle-bin4" type="Link-restriction-length">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ397</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DetectorReport/lane-data
diagram
properties
isRef 0
content complex
children lane-data-item
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="lane-data">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="1024">
      <xs:element name="lane-data-item" type="LaneData"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element DetectorReport/lane-data/lane-data-item

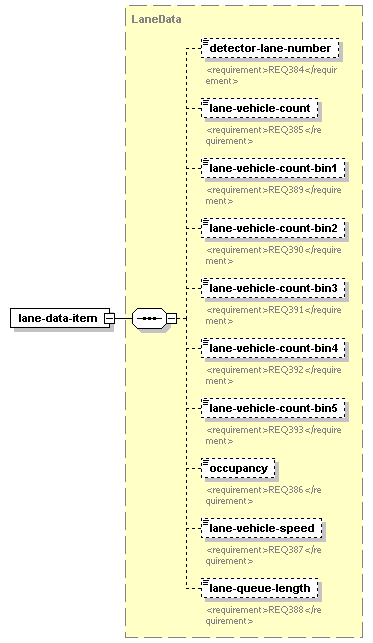

diagram
type LaneData
properties
isRef 0
content complex
children detector-lane-number lane-vehicle-count lane-vehicle-count-bin1 lane-vehicle-count-bin2 lane-vehicle-count-bin3 lane-vehicle-count-bin4 lane-vehicle-count-bin5 occupancy lane-vehicle-speed lane-queue-length
source <xs:element name="lane-data-item" type="LaneData"/>
