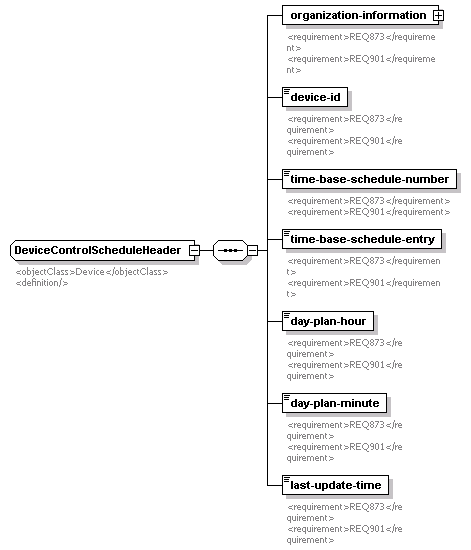

complexType DeviceControlScheduleHeader
diagram
namespace http://www.ite.org/tmdd
children organization-information device-id time-base-schedule-number time-base-schedule-entry day-plan-hour day-plan-minute last-update-time
used by
elements GateControlSchedule/device-control-schedule-header HARControlSchedule/device-control-schedule-header LCSControlSchedule/device-control-schedule-header RampMeterControlSchedule/device-control-schedule-header IntersectionSignalControlSchedule/device-control-schedule-header
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DeviceControlScheduleHeader">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time-base-schedule-number" type="ntcip:TimeBaseScheduleNumber">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="time-base-schedule-entry" type="ntcip:TimeBaseScheduleEntry">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="day-plan-hour" type="ntcip:DayPlanHour">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="day-plan-minute" type="ntcip:DayPlanMinute">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ873</requirement>
          <requirement>REQ901</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

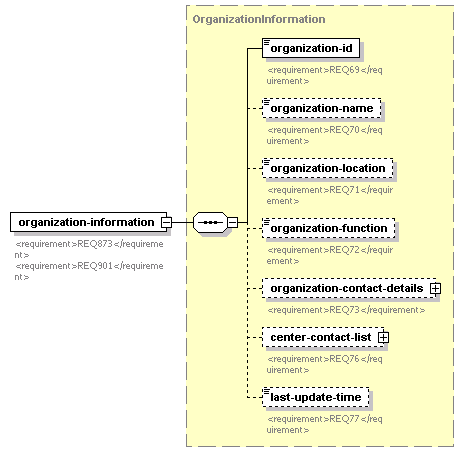

element DeviceControlScheduleHeader/organization-information
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/time-base-schedule-number
diagram
type ntcip:TimeBaseScheduleNumber
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="time-base-schedule-number" type="ntcip:TimeBaseScheduleNumber">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/time-base-schedule-entry
diagram
type ntcip:TimeBaseScheduleEntry
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="time-base-schedule-entry" type="ntcip:TimeBaseScheduleEntry">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/day-plan-hour
diagram
type ntcip:DayPlanHour
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="day-plan-hour" type="ntcip:DayPlanHour">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/day-plan-minute
diagram
type ntcip:DayPlanMinute
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="day-plan-minute" type="ntcip:DayPlanMinute">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DeviceControlScheduleHeader/last-update-time
diagram
type DateTimeZone
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ873</requirement>
<requirement>REQ901</requirement>
source <xs:element name="last-update-time" type="DateTimeZone">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ873</requirement>
      <requirement>REQ901</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
