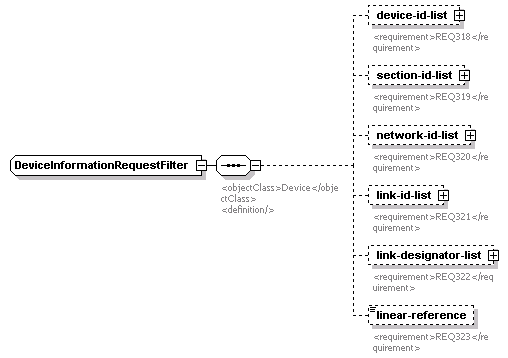

complexType DeviceInformationRequestFilter

diagram

namespace

http://www.ite.org/tmdd

children

device-id-list section-id-list network-id-list link-id-list link-designator-list linear-reference

used by

element

DeviceInformationRequest/device-filter

source

<xs:complexType name="DeviceInformationRequestFilter">
<xs:sequence>
    <xs:annotation>
      <xs:documentation>
        <objectClass>Device</objectClass>
        <definition/>
      </xs:documentation>
    </xs:annotation>
    <xs:element name="device-id-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ318</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="device-id" type="Organization-resource-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="section-id-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ319</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="section-id" type="Organization-resource-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="network-id-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ320</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="network-id" type="Roadway-network-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-id-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ321</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link" type="Roadway-network-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-designator-list" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ322</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link-designator" type="Link-route-designator"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ323</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>

</xs:sequence>
</xs:complexType>

element DeviceInformationRequestFilter/device-id-list

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

device-id

annotation

documentation

<requirement>REQ318</requirement>

source

<xs:element name="device-id-list" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ318</requirement>
    </xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="device-id" type="Organization-resource-identifier"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

element DeviceInformationRequestFilter/device-id-list/device-id

diagram

type

Organization-resource-identifier

properties

isRef	0
content	simple

facets

minLength	1
maxLength	32

source

<xs:element name="device-id" type="Organization-resource-identifier"/>

element DeviceInformationRequestFilter/section-id-list

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

section-id

annotation

documentation

<requirement>REQ319</requirement>

source

<xs:element name="section-id-list" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ319</requirement>
    </xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="section-id" type="Organization-resource-identifier"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

element DeviceInformationRequestFilter/section-id-list/section-id

diagram

type

Organization-resource-identifier

properties

isRef	0
content	simple

facets

minLength	1
maxLength	32

source

<xs:element name="section-id" type="Organization-resource-identifier"/>

element DeviceInformationRequestFilter/network-id-list

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

network-id

annotation

documentation

<requirement>REQ320</requirement>

source

<xs:element name="network-id-list" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ320</requirement>
    </xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="network-id" type="Roadway-network-identifier"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

element DeviceInformationRequestFilter/network-id-list/network-id

diagram

type

Roadway-network-identifier

properties

isRef	0
content	simple

facets

minLength	1
maxLength	32

source

<xs:element name="network-id" type="Roadway-network-identifier"/>

element DeviceInformationRequestFilter/link-id-list

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

link

annotation

documentation

<requirement>REQ321</requirement>

source

<xs:element name="link-id-list" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ321</requirement>
    </xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link" type="Roadway-network-identifier"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

element DeviceInformationRequestFilter/link-id-list/link

diagram

type

Roadway-network-identifier

properties

isRef	0
content	simple

facets

minLength	1
maxLength	32

source

<xs:element name="link" type="Roadway-network-identifier"/>

element DeviceInformationRequestFilter/link-designator-list

diagram

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

link-designator

annotation

documentation

<requirement>REQ322</requirement>

source

<xs:element name="link-designator-list" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ322</requirement>
    </xs:documentation>
</xs:annotation>
<xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link-designator" type="Link-route-designator"/>
    </xs:sequence>
</xs:complexType>
</xs:element>

element DeviceInformationRequestFilter/link-designator-list/link-designator

diagram

type

Link-route-designator

properties

isRef	0
content	simple

facets

minLength	1
maxLength	64

source

<xs:element name="link-designator" type="Link-route-designator"/>

element DeviceInformationRequestFilter/linear-reference

diagram

type

Link-location-linear-reference

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

minInclusive	0
maxInclusive	2000000

annotation

documentation

<requirement>REQ323</requirement>

source

<xs:element name="linear-reference" type="Link-location-linear-reference" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ323</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>
