complexType EventLane

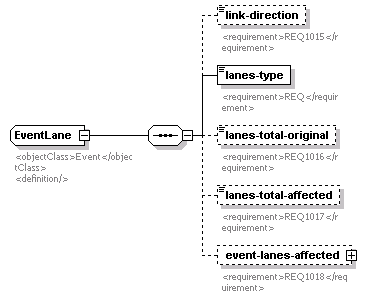

diagram
namespace http://www.ite.org/tmdd
children link-direction lanes-type lanes-total-original lanes-total-affected event-lanes-affected
used by
element EventDetail/event-lanes/event-lane
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="EventLane">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="link-direction" type="Link-direction" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1015</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lanes-type" type="Event-lanes-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lanes-total-original" type="Event-lanes-total-lanes" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1016</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="lanes-total-affected" type="Event-lanes-total-affected" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1017</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-lanes-affected" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1018</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="event-lanes-affected-item" type="Event-lanes-affected"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EventLane/link-direction
diagram
type Link-direction
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ1015</requirement>
source <xs:element name="link-direction" type="Link-direction" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1015</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventLane/lanes-type
diagram
type Event-lanes-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="lanes-type" type="Event-lanes-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventLane/lanes-total-original
diagram
type Event-lanes-total-lanes
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ1016</requirement>
source <xs:element name="lanes-total-original" type="Event-lanes-total-lanes" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1016</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventLane/lanes-total-affected
diagram
type Event-lanes-total-affected
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ1017</requirement>
source <xs:element name="lanes-total-affected" type="Event-lanes-total-affected" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1017</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventLane/event-lanes-affected
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-lanes-affected-item
annotation
documentation
<requirement>REQ1018</requirement>
source <xs:element name="event-lanes-affected" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1018</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="event-lanes-affected-item" type="Event-lanes-affected"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element EventLane/event-lanes-affected/event-lanes-affected-item
diagram
type Event-lanes-affected
properties
isRef 0
content simple
source <xs:element name="event-lanes-affected-item" type="Event-lanes-affected"/>
