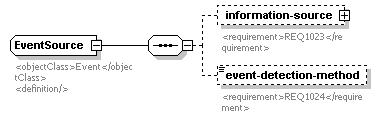

complexType EventSource
diagram
namespace http://www.ite.org/tmdd
children information-source event-detection-method
used by
element FullEventUpdate/event-source
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="EventSource">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="information-source" type="OrganizationInformation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1023</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-detection-method" type="Event-detection-method" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1024</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

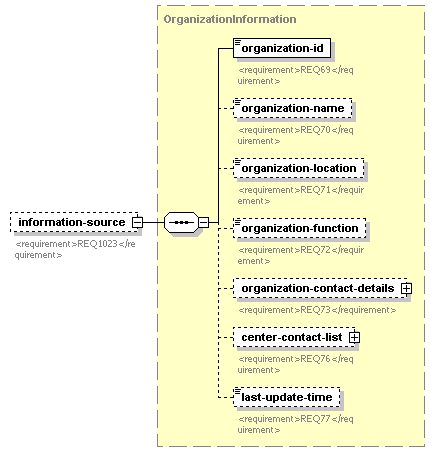

element EventSource/information-source
diagram
type OrganizationInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ1023</requirement>
source <xs:element name="information-source" type="OrganizationInformation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1023</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventSource/event-detection-method
diagram
type Event-detection-method
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ1024</requirement>
source <xs:element name="event-detection-method" type="Event-detection-method" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1024</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
