complexType HARInventory

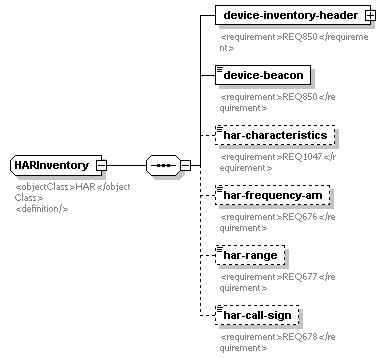

diagram
namespace http://www.ite.org/tmdd
children device-inventory-header device-beacon har-characteristics har-frequency-am har-range har-call-sign
used by
element hARInventory
annotation
documentation
<objectClass>HAR</objectClass>
<definition/>
source <xs:complexType name="HARInventory">
  <xs:annotation>
    <xs:documentation>
      <objectClass>HAR</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ850</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-beacon" type="Device-beacon">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ850</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-characteristics" type="Har-characteristics" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1047</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-frequency-am" type="Event-frequency-am" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ676</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-range" type="Har-range" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ677</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="har-call-sign" type="Har-call-sign" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ678</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element HARInventory/device-inventory-header

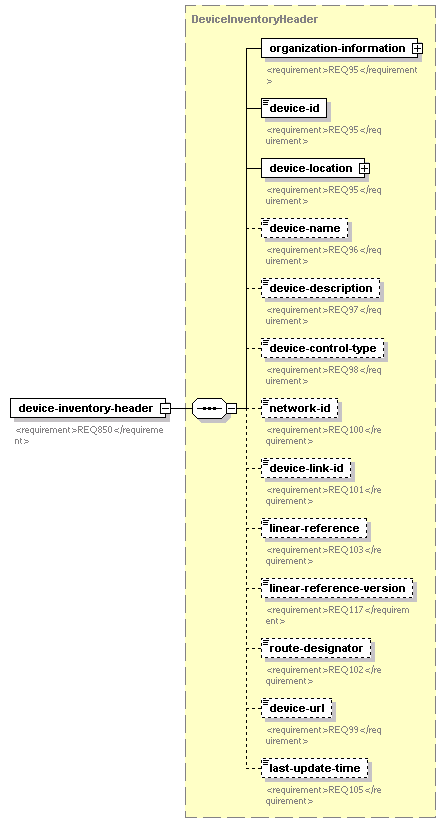

diagram
type DeviceInventoryHeader
properties
isRef 0
content complex
children organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
annotation
documentation
<requirement>REQ850</requirement>
source <xs:element name="device-inventory-header" type="DeviceInventoryHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ850</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARInventory/device-beacon
diagram
type Device-beacon
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ850</requirement>
source <xs:element name="device-beacon" type="Device-beacon">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ850</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARInventory/har-characteristics
diagram
type Har-characteristics
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 256
annotation
documentation
<requirement>REQ1047</requirement>
source <xs:element name="har-characteristics" type="Har-characteristics" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1047</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARInventory/har-frequency-am
diagram
type Event-frequency-am
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 53
maxInclusive 171
annotation
documentation
<requirement>REQ676</requirement>
source <xs:element name="har-frequency-am" type="Event-frequency-am" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ676</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARInventory/har-range
diagram
type Har-range
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxInclusive 65535
annotation
documentation
<requirement>REQ677</requirement>
source <xs:element name="har-range" type="Har-range" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ677</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element HARInventory/har-call-sign
diagram
type Har-call-sign
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 4
annotation
documentation
<requirement>REQ678</requirement>
source <xs:element name="har-call-sign" type="Har-call-sign" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ678</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
