complexType IntersectionSignalTimingPlanRequest

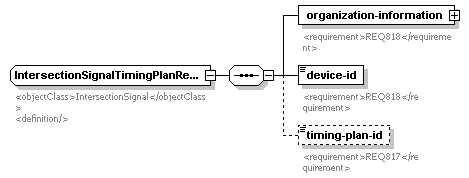

diagram
namespace http://www.ite.org/tmdd
children organization-information device-id timing-plan-id
used by
element intersectionSignalTimingPlanRequest
annotation
documentation
<objectClass>IntersectionSignal</objectClass>
<definition/>
source <xs:complexType name="IntersectionSignalTimingPlanRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>IntersectionSignal</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-information" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ818</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ818</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ817</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element IntersectionSignalTimingPlanRequest/organization-information

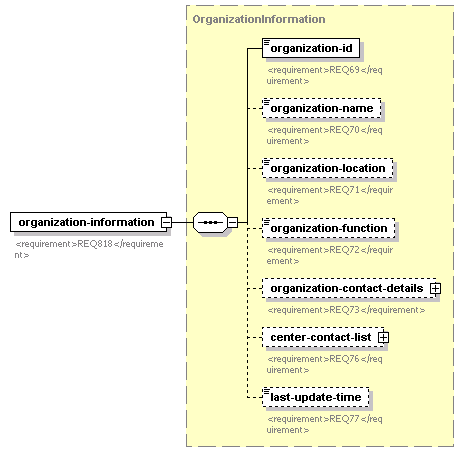

diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ818</requirement>
source <xs:element name="organization-information" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ818</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalTimingPlanRequest/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ818</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ818</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element IntersectionSignalTimingPlanRequest/timing-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ817</requirement>
source <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ817</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
