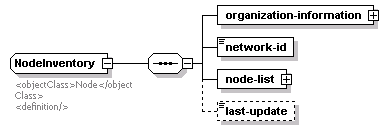

complexType NodeInventory

diagram
namespace	http://www.ite.org/tmdd
children	organization-information network-id node-list last-update
used by	element  nodeInventory
annotation	documentation <objectClass>Node</objectClass> <definition/>
source	<xs:complexType name="NodeInventory">   <xs:annotation>     <xs:documentation>       <objectClass>Node</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="organization-information" type="OrganizationInformation"/>     <xs:element name="network-id" type="Roadway-network-identifier"/>     <xs:element name="node-list">       <xs:complexType>         <xs:sequence maxOccurs="255">           <xs:element name="node" type="NodeList"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="last-update" type="DateTimeZone" minOccurs="0"/>   </xs:sequence> </xs:complexType>

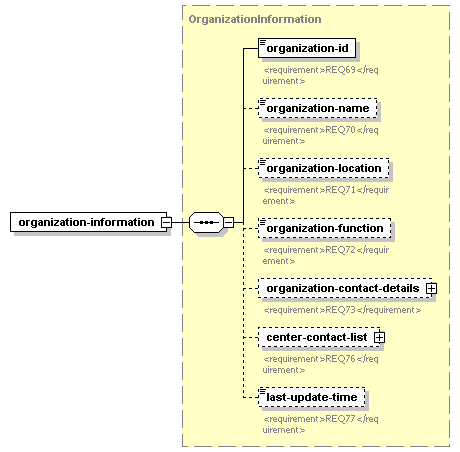

element NodeInventory/organization-information

diagram
type	OrganizationInformation
properties	isRef  0 content  complex
children	organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source	<xs:element name="organization-information" type="OrganizationInformation"/>

element NodeInventory/network-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="network-id" type="Roadway-network-identifier"/>

element NodeInventory/node-list

diagram
properties	isRef  0 content  complex
children	node
source	<xs:element name="node-list">   <xs:complexType>     <xs:sequence maxOccurs="255">       <xs:element name="node" type="NodeList"/>     </xs:sequence>   </xs:complexType> </xs:element>

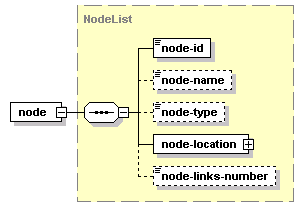

element NodeInventory/node-list/node

diagram
type	NodeList
properties	isRef  0 content  complex
children	node-id node-name node-type node-location node-links-number
source	<xs:element name="node" type="NodeList"/>

element NodeInventory/last-update

diagram
type	DateTimeZone
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="last-update" type="DateTimeZone" minOccurs="0"/>
