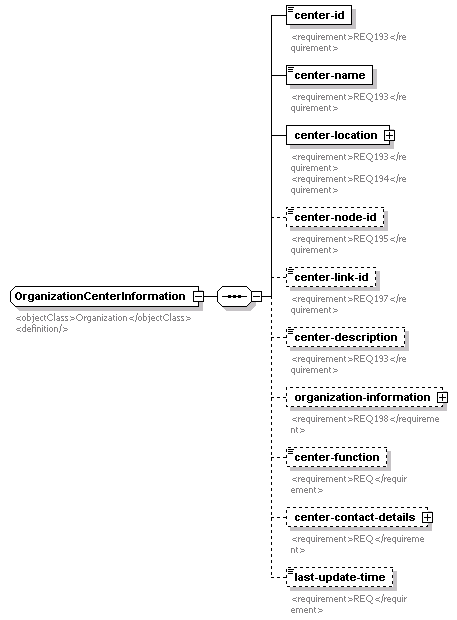

complexType OrganizationCenterInformation
diagram
namespace http://www.ite.org/tmdd
children center-id center-name center-location center-node-id center-link-id center-description organization-information center-function center-contact-details last-update-time
used by
elements OrganizationInformation/center-contact-list/center-contact-details organizationCenterInformation
annotation
documentation
<objectClass>Organization</objectClass>
<definition/>
source <xs:complexType name="OrganizationCenterInformation">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Organization</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="center-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ193</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-name" type="Organization-resource-name">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ193</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-location" type="lrms:GeoLocation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ193</requirement>
          <requirement>REQ194</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-node-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ195</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-link-id" type="Roadway-network-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ197</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-description" type="Event-description-notes-and-comments" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ193</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="organization-information" type="OrganizationInformation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ198</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-function" type="Organization-function" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="center-contact-details" type="ContactDetails" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element OrganizationCenterInformation/center-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ193</requirement>
source <xs:element name="center-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ193</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/center-name
diagram
type Organization-resource-name
properties
isRef 0
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ193</requirement>
source <xs:element name="center-name" type="Organization-resource-name">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ193</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

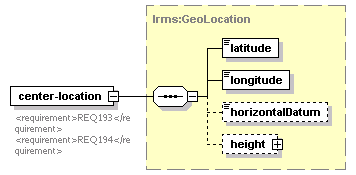

element OrganizationCenterInformation/center-location
diagram
type lrms:GeoLocation
properties
isRef 0
content complex
children latitude longitude horizontalDatum height
annotation
documentation
<requirement>REQ193</requirement>
<requirement>REQ194</requirement>
source <xs:element name="center-location" type="lrms:GeoLocation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ193</requirement>
      <requirement>REQ194</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/center-node-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ195</requirement>
source <xs:element name="center-node-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ195</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/center-link-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ197</requirement>
source <xs:element name="center-link-id" type="Roadway-network-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ197</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/center-description
diagram
type Event-description-notes-and-comments
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 2048
annotation
documentation
<requirement>REQ193</requirement>
source <xs:element name="center-description" type="Event-description-notes-and-comments" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ193</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

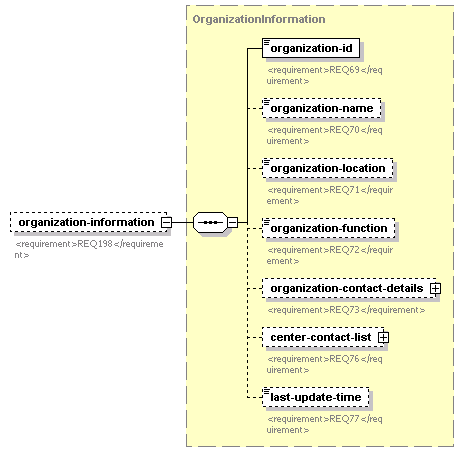

element OrganizationCenterInformation/organization-information
diagram
type OrganizationInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ198</requirement>
source <xs:element name="organization-information" type="OrganizationInformation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ198</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/center-function
diagram
type Organization-function
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 128
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="center-function" type="Organization-function" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

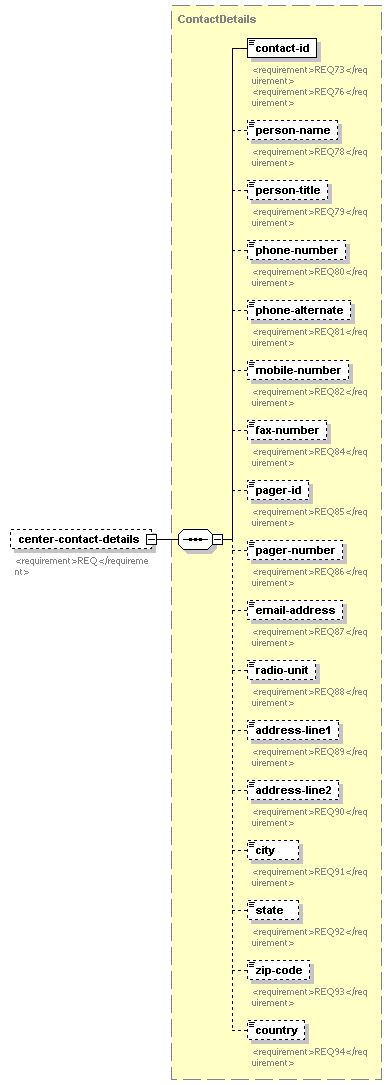

element OrganizationCenterInformation/center-contact-details
diagram
type ContactDetails
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children contact-id person-name person-title phone-number phone-alternate mobile-number fax-number pager-id pager-number email-address radio-unit address-line1 address-line2 city state zip-code country
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="center-contact-details" type="ContactDetails" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element OrganizationCenterInformation/last-update-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="last-update-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
