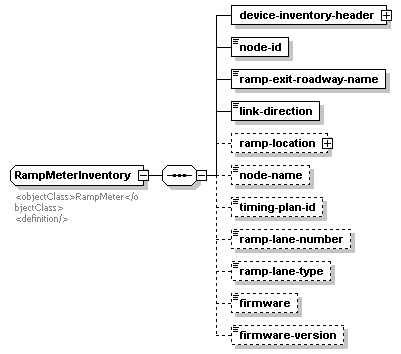

complexType RampMeterInventory

diagram
namespace	http://www.ite.org/tmdd
children	device-inventory-header node-id ramp-exit-roadway-name link-direction ramp-location node-name timing-plan-id ramp-lane-number ramp-lane-type firmware firmware-version
used by	element  rampMeterInventory
annotation	documentation <objectClass>RampMeter</objectClass> <definition/>
source	<xs:complexType name="RampMeterInventory">   <xs:annotation>     <xs:documentation>       <objectClass>RampMeter</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>     <xs:element name="node-id" type="Roadway-network-identifier"/>     <xs:element name="ramp-exit-roadway-name" type="Roadway-network-name"/>     <xs:element name="link-direction" type="Link-direction"/>     <xs:element name="ramp-location" type="lrms:GeoLocation" minOccurs="0"/>     <xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>     <xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0"/>     <xs:element name="ramp-lane-number" type="Ramp-lane-number" minOccurs="0"/>     <xs:element name="ramp-lane-type" type="Ramp-lane-type" minOccurs="0"/>     <xs:element name="firmware" type="Organization-resource-name" minOccurs="0"/>     <xs:element name="firmware-version" type="Organization-resource-name" minOccurs="0"/>   </xs:sequence> </xs:complexType>

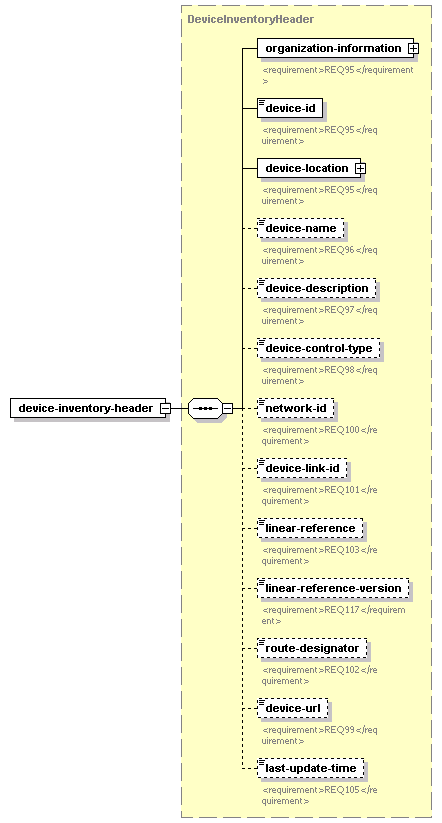

element RampMeterInventory/device-inventory-header

diagram
type	DeviceInventoryHeader
properties	isRef  0 content  complex
children	organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
source	<xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>

element RampMeterInventory/node-id

diagram
type	Roadway-network-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="node-id" type="Roadway-network-identifier"/>

element RampMeterInventory/ramp-exit-roadway-name

diagram
type	Roadway-network-name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="ramp-exit-roadway-name" type="Roadway-network-name"/>

element RampMeterInventory/link-direction

diagram
type	Link-direction
properties	isRef  0 content  simple
source	<xs:element name="link-direction" type="Link-direction"/>

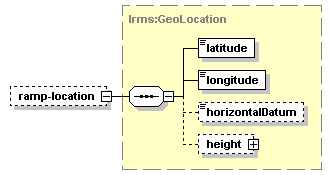

element RampMeterInventory/ramp-location

diagram
type	lrms:GeoLocation
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="ramp-location" type="lrms:GeoLocation" minOccurs="0"/>

element RampMeterInventory/node-name

diagram
type	Roadway-network-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="node-name" type="Roadway-network-name" minOccurs="0"/>

element RampMeterInventory/timing-plan-id

diagram
type	Organization-resource-identifier
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="timing-plan-id" type="Organization-resource-identifier" minOccurs="0"/>

element RampMeterInventory/ramp-lane-number

diagram
type	Ramp-lane-number
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1 maxInclusive  50
source	<xs:element name="ramp-lane-number" type="Ramp-lane-number" minOccurs="0"/>

element RampMeterInventory/ramp-lane-type

diagram
type	Ramp-lane-type
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="ramp-lane-type" type="Ramp-lane-type" minOccurs="0"/>

element RampMeterInventory/firmware

diagram
type	Organization-resource-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="firmware" type="Organization-resource-name" minOccurs="0"/>

element RampMeterInventory/firmware-version

diagram
type	Organization-resource-name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="firmware-version" type="Organization-resource-name" minOccurs="0"/>
