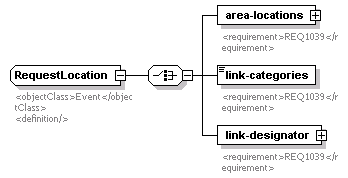

complexType RequestLocation
diagram
namespace http://www.ite.org/tmdd
children area-locations link-categories link-designator
used by
element EventFilterRequest/request-locations/request-location
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="RequestLocation">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="area-locations">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1039</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="area-location" type="AreaLocation"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-categories" type="Event-link-categories">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1039</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="link-designator">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1039</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="link-designator-item" type="Link-route-designator"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

element RequestLocation/area-locations
diagram
properties
isRef 0
content complex
children area-location
annotation
documentation
<requirement>REQ1039</requirement>
source <xs:element name="area-locations">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1039</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="area-location" type="AreaLocation"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

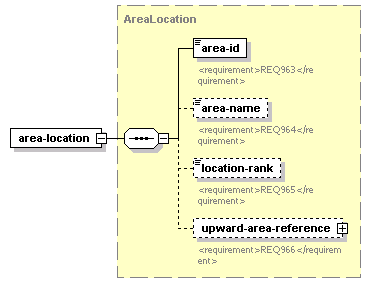

element RequestLocation/area-locations/area-location
diagram
type AreaLocation
properties
isRef 0
content complex
children area-id area-name location-rank upward-area-reference
source <xs:element name="area-location" type="AreaLocation"/>

element RequestLocation/link-categories
diagram
type Event-link-categories
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ1039</requirement>
source <xs:element name="link-categories" type="Event-link-categories">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1039</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element RequestLocation/link-designator
diagram
properties
isRef 0
content complex
children link-designator-item
annotation
documentation
<requirement>REQ1039</requirement>
source <xs:element name="link-designator">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1039</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="link-designator-item" type="Link-route-designator"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element RequestLocation/link-designator/link-designator-item
diagram
type Link-route-designator
properties
isRef 0
content simple
facets
minLength 1
maxLength 64
source <xs:element name="link-designator-item" type="Link-route-designator"/>
