complexType SignalControlModeRequest

diagram
namespace	http://www.ite.org/tmdd
children	device-control-request-header requested-mode
annotation	documentation <objectClass>IntersectionSignal</objectClass> <definition/>
source	<xs:complexType name="SignalControlModeRequest">   <xs:annotation>     <xs:documentation>       <objectClass>IntersectionSignal</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0"/>     <xs:element name="requested-mode" type="Intersection-signal-control-mode"/>   </xs:sequence> </xs:complexType>

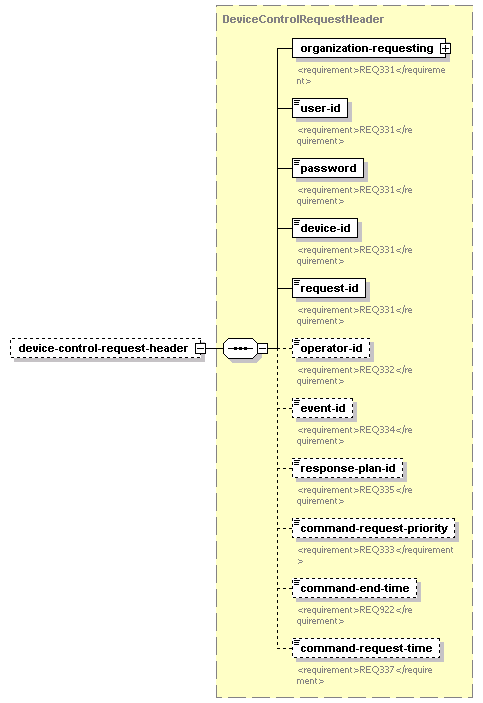

element SignalControlModeRequest/device-control-request-header

diagram
type	DeviceControlRequestHeader
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	organization-requesting user-id password device-id request-id operator-id event-id response-plan-id command-request-priority command-end-time command-request-time
source	<xs:element name="device-control-request-header" type="DeviceControlRequestHeader" minOccurs="0"/>

element SignalControlModeRequest/requested-mode

diagram
type	Intersection-signal-control-mode
properties	isRef  0 content  simple
source	<xs:element name="requested-mode" type="Intersection-signal-control-mode"/>
