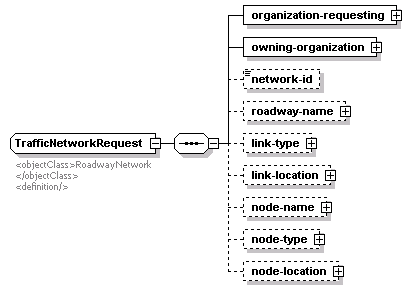

complexType TrafficNetworkRequest
diagram
namespace http://www.ite.org/tmdd
children organization-requesting owning-organization network-id roadway-name link-type link-location node-name node-type node-location
used by
element trafficNetworkRequest
annotation
documentation
<objectClass>RoadwayNetwork</objectClass>
<definition/>
source <xs:complexType name="TrafficNetworkRequest">
  <xs:annotation>
    <xs:documentation>
      <objectClass>RoadwayNetwork</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-requesting" type="OrganizationInformation"/>
    <xs:element name="owning-organization" type="OrganizationInformation"/>
    <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0"/>
    <xs:element name="roadway-name" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="roadway-name-item" type="Roadway-network-name"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-type" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link-type-item" type="Link-type"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="link-location" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="link-location-item" type="Event-location-area-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="node-name" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="node-name-item" type="Roadway-network-name"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="node-type" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="node-type-item" type="Node-type"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="node-location" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="255">
          <xs:element name="node-location-item" type="Event-location-area-identifier"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

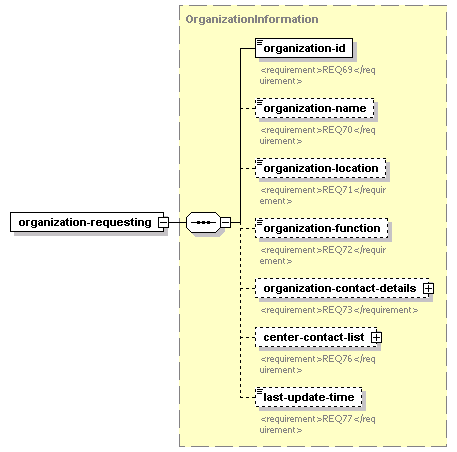

element TrafficNetworkRequest/organization-requesting
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="organization-requesting" type="OrganizationInformation"/>

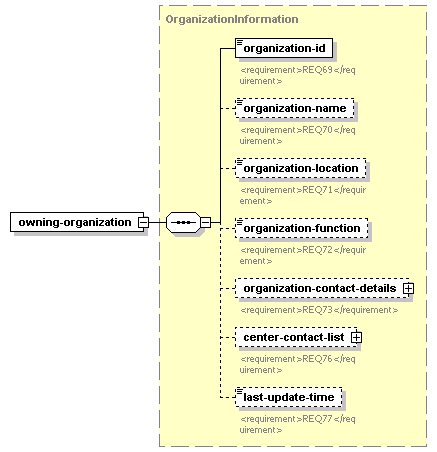

element TrafficNetworkRequest/owning-organization
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
source <xs:element name="owning-organization" type="OrganizationInformation"/>

element TrafficNetworkRequest/network-id
diagram
type Roadway-network-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
source <xs:element name="network-id" type="Roadway-network-identifier" minOccurs="0"/>

element TrafficNetworkRequest/roadway-name
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children roadway-name-item
source <xs:element name="roadway-name" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="roadway-name-item" type="Roadway-network-name"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/roadway-name/roadway-name-item
diagram
type Roadway-network-name
properties
isRef 0
content simple
facets
minLength 1
maxLength 128
source <xs:element name="roadway-name-item" type="Roadway-network-name"/>

element TrafficNetworkRequest/link-type
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children link-type-item
source <xs:element name="link-type" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link-type-item" type="Link-type"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/link-type/link-type-item
diagram
type Link-type
properties
isRef 0
content simple
source <xs:element name="link-type-item" type="Link-type"/>

element TrafficNetworkRequest/link-location
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children link-location-item
source <xs:element name="link-location" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="link-location-item" type="Event-location-area-identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/link-location/link-location-item
diagram
type Event-location-area-identifier
properties
isRef 0
content simple
facets
length 10
source <xs:element name="link-location-item" type="Event-location-area-identifier"/>

element TrafficNetworkRequest/node-name
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children node-name-item
source <xs:element name="node-name" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="node-name-item" type="Roadway-network-name"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/node-name/node-name-item
diagram
type Roadway-network-name
properties
isRef 0
content simple
facets
minLength 1
maxLength 128
source <xs:element name="node-name-item" type="Roadway-network-name"/>

element TrafficNetworkRequest/node-type
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children node-type-item
source <xs:element name="node-type" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="node-type-item" type="Node-type"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/node-type/node-type-item
diagram
type Node-type
properties
isRef 0
content simple
source <xs:element name="node-type-item" type="Node-type"/>

element TrafficNetworkRequest/node-location
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children node-location-item
source <xs:element name="node-location" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="255">
      <xs:element name="node-location-item" type="Event-location-area-identifier"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element TrafficNetworkRequest/node-location/node-location-item
diagram
type Event-location-area-identifier
properties
isRef 0
content simple
facets
length 10
source <xs:element name="node-location-item" type="Event-location-area-identifier"/>
