complexType VSInventory

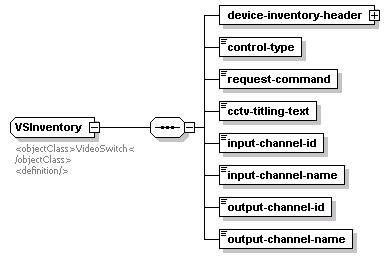

diagram
namespace	http://www.ite.org/tmdd
children	device-inventory-header control-type request-command cctv-titling-text input-channel-id input-channel-name output-channel-id output-channel-name
used by	element  vSInventory
annotation	documentation <objectClass>VideoSwitch</objectClass> <definition/>
source	<xs:complexType name="VSInventory">   <xs:annotation>     <xs:documentation>       <objectClass>VideoSwitch</objectClass>       <definition/>     </xs:documentation>   </xs:annotation>   <xs:sequence>     <xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>     <xs:element name="control-type" type="Device-control-type"/>     <xs:element name="request-command" type="Cctv-request-command"/>     <xs:element name="cctv-titling-text" type="Cctv-titling-text"/>     <xs:element name="input-channel-id" type="Organization-resource-identifier"/>     <xs:element name="input-channel-name" type="Organization-resource-name"/>     <xs:element name="output-channel-id" type="Organization-resource-identifier"/>     <xs:element name="output-channel-name" type="Organization-resource-name"/>   </xs:sequence> </xs:complexType>

element VSInventory/device-inventory-header

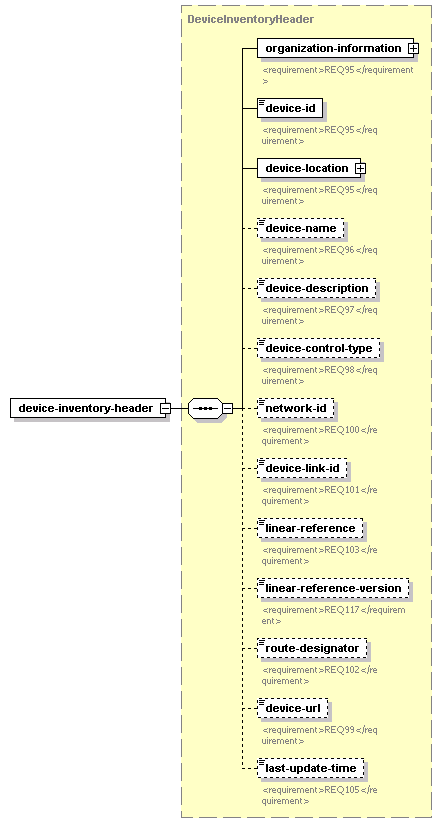

diagram
type	DeviceInventoryHeader
properties	isRef  0 content  complex
children	organization-information device-id device-location device-name device-description device-control-type network-id device-link-id linear-reference linear-reference-version route-designator device-url last-update-time
source	<xs:element name="device-inventory-header" type="DeviceInventoryHeader"/>

element VSInventory/control-type

diagram
type	Device-control-type
properties	isRef  0 content  simple
source	<xs:element name="control-type" type="Device-control-type"/>

element VSInventory/request-command

diagram
type	Cctv-request-command
properties	isRef  0 content  simple
source	<xs:element name="request-command" type="Cctv-request-command"/>

element VSInventory/cctv-titling-text

diagram
type	Cctv-titling-text
properties	isRef  0 content  simple
facets	minLength  1 maxLength  64
source	<xs:element name="cctv-titling-text" type="Cctv-titling-text"/>

element VSInventory/input-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="input-channel-id" type="Organization-resource-identifier"/>

element VSInventory/input-channel-name

diagram
type	Organization-resource-name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="input-channel-name" type="Organization-resource-name"/>

element VSInventory/output-channel-id

diagram
type	Organization-resource-identifier
properties	isRef  0 content  simple
facets	minLength  1 maxLength  32
source	<xs:element name="output-channel-id" type="Organization-resource-identifier"/>

element VSInventory/output-channel-name

diagram
type	Organization-resource-name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  128
source	<xs:element name="output-channel-name" type="Organization-resource-name"/>
