complexType DirectoryAppointmentReply

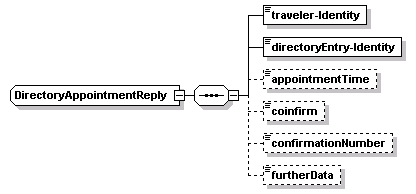

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	traveler-Identity directoryEntry-Identity appointmentTime coinfirm confirmationNumber furtherData
used by	element  directoryAppointmentReply
source	<xs:complexType name="DirectoryAppointmentReply">   <xs:sequence>     <xs:element name="traveler-Identity" type="Traveler-Identity"/>     <xs:element name="directoryEntry-Identity" type="Identity"/>     <xs:element name="appointmentTime" type="DateTimePair" minOccurs="0"/>     <xs:element name="coinfirm" type="Appointment-Confirmation" minOccurs="0"/>     <xs:element name="confirmationNumber" type="ConfirmationNumber" minOccurs="0"/>     <xs:element name="furtherData" type="URL-Link" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element DirectoryAppointmentReply/traveler-Identity

diagram
type	Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity"/>

element DirectoryAppointmentReply/directoryEntry-Identity

diagram
type	Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  9
source	<xs:element name="directoryEntry-Identity" type="Identity"/>

element DirectoryAppointmentReply/appointmentTime

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="appointmentTime" type="DateTimePair" minOccurs="0"/>

element DirectoryAppointmentReply/coinfirm

diagram
type	Appointment-Confirmation
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="coinfirm" type="Appointment-Confirmation" minOccurs="0"/>

element DirectoryAppointmentReply/confirmationNumber

diagram
type	ConfirmationNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="confirmationNumber" type="ConfirmationNumber" minOccurs="0"/>

element DirectoryAppointmentReply/furtherData

diagram
type	URL-Link
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  255
source	<xs:element name="furtherData" type="URL-Link" minOccurs="0"/>
