complexType LotInformation

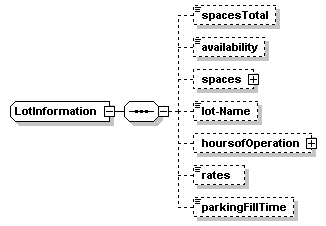

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	spacesTotal availability spaces lot-Name hoursofOperation rates parkingFillTime
used by	element  ParkingLotInformation/lotDetail
source	<xs:complexType name="LotInformation">   <xs:sequence>     <xs:element name="spacesTotal" type="tcip:PI-ParkingSpacesTotal" minOccurs="0"/>     <xs:element name="availability" type="tcip:PI-ParkingAvailability" minOccurs="0"/>     <xs:element name="spaces" type="ParkingSpaceTypes" minOccurs="0"/>     <xs:element name="lot-Name" type="Lot-Name" minOccurs="0"/>     <xs:element name="hoursofOperation" type="TimePair" minOccurs="0"/>     <xs:element name="rates" type="tcip:PI-ParkingRates" minOccurs="0"/>     <xs:element name="parkingFillTime" type="DateTimePair" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element LotInformation/spacesTotal

diagram
type	tcip:PI-ParkingSpacesTotal
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="spacesTotal" type="tcip:PI-ParkingSpacesTotal" minOccurs="0"/>

element LotInformation/availability

diagram
type	tcip:PI-ParkingAvailability
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="availability" type="tcip:PI-ParkingAvailability" minOccurs="0"/>

element LotInformation/spaces

diagram
type	ParkingSpaceTypes
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	type spaces vehicleClass
source	<xs:element name="spaces" type="ParkingSpaceTypes" minOccurs="0"/>

element LotInformation/lot-Name

diagram
type	Lot-Name
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="lot-Name" type="Lot-Name" minOccurs="0"/>

element LotInformation/hoursofOperation

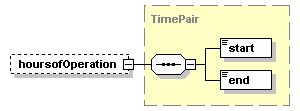

diagram
type	TimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	start end
source	<xs:element name="hoursofOperation" type="TimePair" minOccurs="0"/>

element LotInformation/rates

diagram
type	tcip:PI-ParkingRates
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  100000
source	<xs:element name="rates" type="tcip:PI-ParkingRates" minOccurs="0"/>

element LotInformation/parkingFillTime

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="parkingFillTime" type="DateTimePair" minOccurs="0"/>
