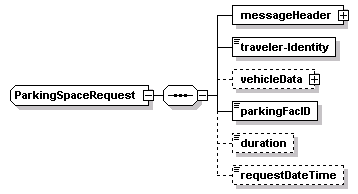

complexType ParkingSpaceRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader traveler-Identity vehicleData parkingFacID duration requestDateTime
used by	element  parkingSpaceRequest
source	<xs:complexType name="ParkingSpaceRequest">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="traveler-Identity" type="Traveler-Identity"/>     <xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>     <xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>     <xs:element name="duration" type="TimeInterval" minOccurs="0"/>     <xs:element name="requestDateTime" type="DateTimePair" minOccurs="0"/>   </xs:sequence> </xs:complexType>

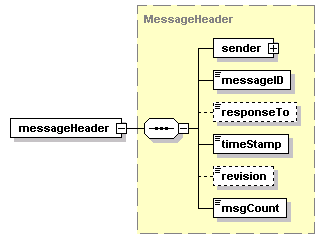

element ParkingSpaceRequest/messageHeader

diagram
type	MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element ParkingSpaceRequest/traveler-Identity

diagram
type	Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity"/>

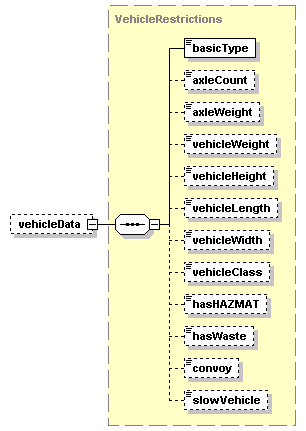

element ParkingSpaceRequest/vehicleData

diagram
type	VehicleRestrictions
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	basicType axleCount axleWeight vehicleWeight vehicleHeight vehicleLength vehicleWidth vehicleClass hasHAZMAT hasWaste convoy slowVehicle
source	<xs:element name="vehicleData" type="VehicleRestrictions" minOccurs="0"/>

element ParkingSpaceRequest/parkingFacID

diagram
type	tcip:PI-ParkingFacID
properties	isRef  0 content  simple
source	<xs:element name="parkingFacID" type="tcip:PI-ParkingFacID"/>

element ParkingSpaceRequest/duration

diagram
type	TimeInterval
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="duration" type="TimeInterval" minOccurs="0"/>

element ParkingSpaceRequest/requestDateTime

diagram
type	DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="requestDateTime" type="DateTimePair" minOccurs="0"/>
