complexType tcip:SPInteriorFeature

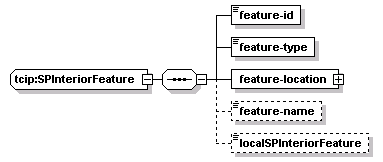

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	feature-id feature-type feature-location feature-name localSPInteriorFeature
source	<xs:complexType name="SPInteriorFeature">   <xs:sequence>     <xs:element name="feature-id" type="SP-FeatureID"/>     <xs:element name="feature-type" type="SP-InteriorFeatureType"/>     <xs:element name="feature-location" type="SPInteriorLocation"/>     <xs:element name="feature-name" type="SP-FeatureName" minOccurs="0"/>     <xs:element name="localSPInteriorFeature" type="local:SPInteriorFeature" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPInteriorFeature/feature-id

diagram
type	tcip:SP-FeatureID
properties	isRef  0 content  simple
source	<xs:element name="feature-id" type="SP-FeatureID"/>

element tcip:SPInteriorFeature/feature-type

diagram
type	tcip:SP-InteriorFeatureType
properties	isRef  0 content  simple
source	<xs:element name="feature-type" type="SP-InteriorFeatureType"/>

element tcip:SPInteriorFeature/feature-location

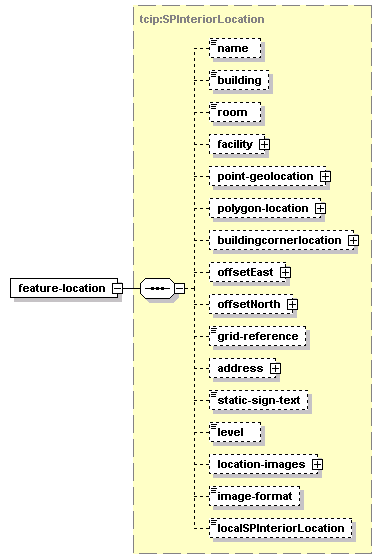

diagram
type	tcip:SPInteriorLocation
properties	isRef  0 content  complex
children	name building room facility point-geolocation polygon-location buildingcornerlocation offsetEast offsetNorth grid-reference address static-sign-text level location-images image-format localSPInteriorLocation
source	<xs:element name="feature-location" type="SPInteriorLocation"/>

element tcip:SPInteriorFeature/feature-name

diagram
type	tcip:SP-FeatureName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="feature-name" type="SP-FeatureName" minOccurs="0"/>

element tcip:SPInteriorFeature/localSPInteriorFeature

diagram
type	SPInteriorFeature
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="localSPInteriorFeature" type="local:SPInteriorFeature" minOccurs="0"/>
