complexType tcip:SpLocationConversion

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	subscriptionInfo point-conversions
used by	element  tcip:spLocationConversion
source	<xs:complexType name="SpLocationConversion">   <xs:sequence>     <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>     <xs:element name="point-conversions">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="point-conversion" type="SPLocationConversionEntry"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:SpLocationConversion/subscriptionInfo

diagram
type	tcip:CPTSubscriptionHeader
properties	isRef  0 content  complex
children	requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source	<xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SpLocationConversion/point-conversions

diagram
properties	isRef  0 content  complex
children	point-conversion
source	<xs:element name="point-conversions">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="point-conversion" type="SPLocationConversionEntry"/>     </xs:sequence>   </xs:complexType> </xs:element>

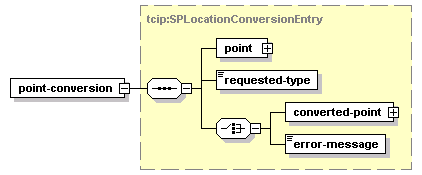

element tcip:SpLocationConversion/point-conversions/point-conversion

diagram
type	tcip:SPLocationConversionEntry
properties	isRef  0 content  complex
children	point requested-type converted-point error-message
source	<xs:element name="point-conversion" type="SPLocationConversionEntry"/>
