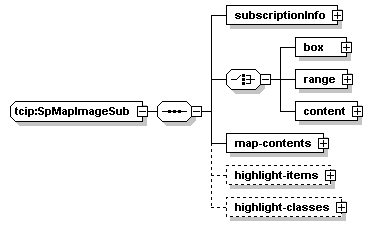

complexType tcip:SpMapImageSub
diagram
namespace http://www.TCIP-Adopted-03-00-01
children subscriptionInfo box range content map-contents highlight-items highlight-classes
used by
element tcip:spMapImageSub
source <xs:complexType name="SpMapImageSub">
  <xs:sequence>
    <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>
    <xs:choice>
      <xs:element name="box" type="SPBoundaryBox"/>
      <xs:element name="range" type="SPBoundaryRange"/>
      <xs:element name="content" type="SPBoundaryContent"/>
    </xs:choice>
    <xs:element name="map-contents">
      <xs:complexType>
        <xs:sequence maxOccurs="200">
          <xs:element name="map-content" type="CPT-FeatureType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="highlight-items" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="highlight-item" type="CPTGenericIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="highlight-classes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="50">
          <xs:element name="highlight-classe" type="CPT-FeatureType"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:SpMapImageSub/subscriptionInfo
diagram
type tcip:CPTSubscriptionHeader
properties
isRef 0
content complex
children requestedType expirationDate expirationTime reportInterval requestIdentifier subscriberIdentifier publisherIdentifier applicability
source <xs:element name="subscriptionInfo" type="CPTSubscriptionHeader"/>

element tcip:SpMapImageSub/box
diagram
type tcip:SPBoundaryBox
properties
isRef 0
content complex
children northeast southwest
source <xs:element name="box" type="SPBoundaryBox"/>

element tcip:SpMapImageSub/range
diagram
type tcip:SPBoundaryRange
properties
isRef 0
content complex
children center radius
source <xs:element name="range" type="SPBoundaryRange"/>

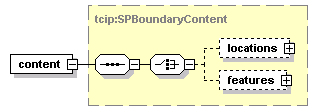

element tcip:SpMapImageSub/content
diagram
type tcip:SPBoundaryContent
properties
isRef 0
content complex
children locations features
source <xs:element name="content" type="SPBoundaryContent"/>

element tcip:SpMapImageSub/map-contents
diagram
properties
isRef 0
content complex
children map-content
source <xs:element name="map-contents">
  <xs:complexType>
    <xs:sequence maxOccurs="200">
      <xs:element name="map-content" type="CPT-FeatureType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SpMapImageSub/map-contents/map-content
diagram
type tcip:CPT-FeatureType
properties
isRef 0
content simple
source <xs:element name="map-content" type="CPT-FeatureType"/>

element tcip:SpMapImageSub/highlight-items
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children highlight-item
source <xs:element name="highlight-items" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="highlight-item" type="CPTGenericIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

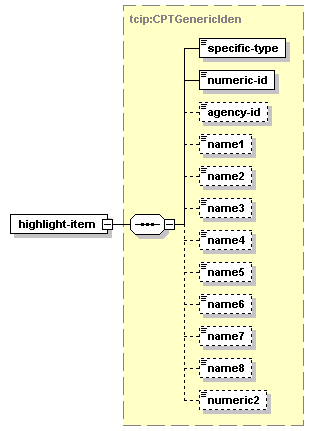

element tcip:SpMapImageSub/highlight-items/highlight-item
diagram
type tcip:CPTGenericIden
properties
isRef 0
content complex
children specific-type numeric-id agency-id name1 name2 name3 name4 name5 name6 name7 name8 numeric2
source <xs:element name="highlight-item" type="CPTGenericIden"/>

element tcip:SpMapImageSub/highlight-classes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children highlight-classe
source <xs:element name="highlight-classes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="50">
      <xs:element name="highlight-classe" type="CPT-FeatureType"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SpMapImageSub/highlight-classes/highlight-classe
diagram
type tcip:CPT-FeatureType
properties
isRef 0
content simple
source <xs:element name="highlight-classe" type="CPT-FeatureType"/>
