complexType tcip:SPSegmentGeolocation

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	segment waypoints data-quality
used by	element  tcip:SpGeolocationData/pattern-segment-waypoints/pattern-segment-waypoint
source	<xs:complexType name="SPSegmentGeolocation">   <xs:sequence>     <xs:element name="segment" type="SCHPatternSegmentIden"/>     <xs:element name="waypoints">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="waypoint" type="lrms:GeoLocation"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SPSegmentGeolocation/segment

diagram
type	tcip:SCHPatternSegmentIden
properties	isRef  0 content  complex
children	segment-id agency-id name
source	<xs:element name="segment" type="SCHPatternSegmentIden"/>

element tcip:SPSegmentGeolocation/waypoints

diagram
properties	isRef  0 content  complex
children	waypoint
source	<xs:element name="waypoints">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="waypoint" type="lrms:GeoLocation"/>     </xs:sequence>   </xs:complexType> </xs:element>

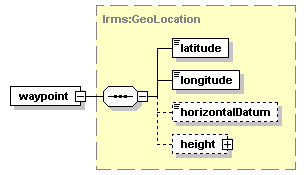

element tcip:SPSegmentGeolocation/waypoints/waypoint

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="waypoint" type="lrms:GeoLocation"/>

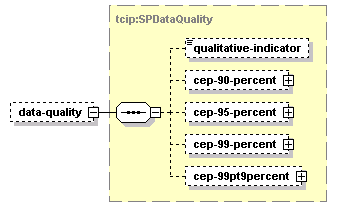

element tcip:SPSegmentGeolocation/data-quality

diagram
type	tcip:SPDataQuality
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	qualitative-indicator cep-90-percent cep-95-percent cep-99-percent cep-99pt9percent
source	<xs:element name="data-quality" type="SPDataQuality" minOccurs="0"/>
