complexType tcip:TspEventLogUnload

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	fileHeader event-log
used by	element  tcip:tspEventLogUnload
source	<xs:complexType name="TspEventLogUnload">   <xs:sequence>     <xs:element name="fileHeader" type="CPTUnloadFileHeader"/>     <xs:element name="event-log">       <xs:complexType>         <xs:sequence maxOccurs="100000">           <xs:element name="event-log-item" type="TSPEventLogEntry"/>         </xs:sequence>       </xs:complexType>     </xs:element>   </xs:sequence> </xs:complexType>

element tcip:TspEventLogUnload/fileHeader

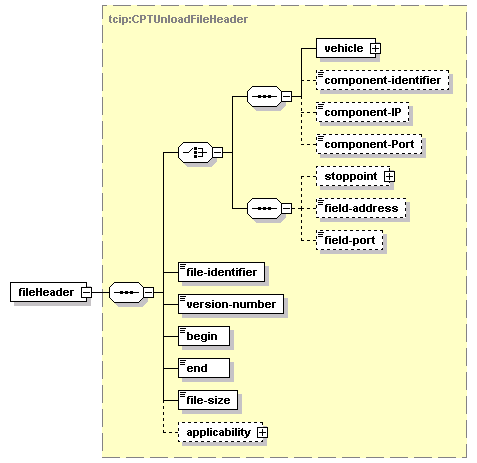

diagram
type	tcip:CPTUnloadFileHeader
properties	isRef  0 content  complex
children	vehicle component-identifier component-IP component-Port stoppoint field-address field-port file-identifier version-number begin end file-size applicability
source	<xs:element name="fileHeader" type="CPTUnloadFileHeader"/>

element tcip:TspEventLogUnload/event-log

diagram
properties	isRef  0 content  complex
children	event-log-item
source	<xs:element name="event-log">   <xs:complexType>     <xs:sequence maxOccurs="100000">       <xs:element name="event-log-item" type="TSPEventLogEntry"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:TspEventLogUnload/event-log/event-log-item

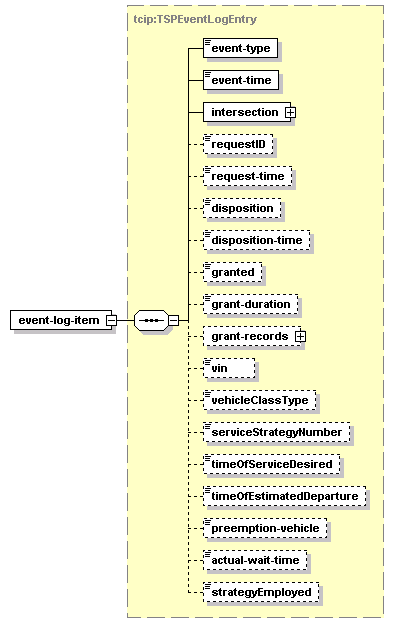

diagram
type	tcip:TSPEventLogEntry
properties	isRef  0 content  complex
children	event-type event-time intersection requestID request-time disposition disposition-time granted grant-duration grant-records vin vehicleClassType serviceStrategyNumber timeOfServiceDesired timeOfEstimatedDeparture preemption-vehicle actual-wait-time strategyEmployed
source	<xs:element name="event-log-item" type="TSPEventLogEntry"/>
