complexType lrms:GeoLocationLink

diagram
namespace	http://www.LRMS-Adopted-02-00-00
children	startPoint endPoint direction
used by	elements  lrms:GeoCoord/geoLocationLink lrms:LinkLocation/geoLocationLink lrms:Geometry/link
source	<xs:complexType name="GeoLocationLink">   <xs:sequence>     <xs:element name="startPoint" type="GeoLocation"/>     <xs:element name="endPoint" type="GeoLocation"/>     <xs:element name="direction" type="Direction" minOccurs="0"/>   </xs:sequence> </xs:complexType>

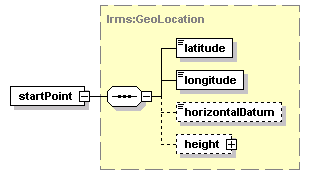

element lrms:GeoLocationLink/startPoint

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="startPoint" type="GeoLocation"/>

element lrms:GeoLocationLink/endPoint

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="endPoint" type="GeoLocation"/>

element lrms:GeoLocationLink/direction

diagram
type	lrms:Direction
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="direction" type="Direction" minOccurs="0"/>
