complexType lrms:GridPointSequence

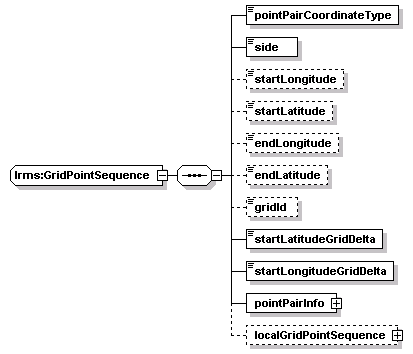

diagram
namespace http://www.LRMS-Adopted-02-00-00
children pointPairCoordinateType side startLongitude startLatitude endLongitude endLatitude gridId startLatitudeGridDelta startLongitudeGridDelta pointPairInfo localGridPointSequence
used by
element lrms:Grid/gridPointSequence
source <xs:complexType name="GridPointSequence">
  <xs:sequence>
    <xs:element name="pointPairCoordinateType" type="GridPointPairCoordinateType"/>
    <xs:element name="side" type="Side"/>
    <xs:element name="startLongitude" type="GridPointLongitude" minOccurs="0"/>
    <xs:element name="startLatitude" type="GridPointLatitude" minOccurs="0"/>
    <xs:element name="endLongitude" type="GridPointLongitude" minOccurs="0"/>
    <xs:element name="endLatitude" type="GridPointLatitude" minOccurs="0"/>
    <xs:element name="gridId" type="Int-index8" minOccurs="0"/>
    <xs:element name="startLatitudeGridDelta" type="GridPointLatLonDelta"/>
    <xs:element name="startLongitudeGridDelta" type="GridPointLatLonDelta"/>
    <xs:element name="pointPairInfo">
      <xs:complexType>
        <xs:sequence maxOccurs="1000">
          <xs:sequence>
            <xs:element name="nextLatitudeGridDelta" type="GridPointLatLonDelta"/>
            <xs:element name="nextLongitudeGridDelta" type="GridPointLatLonDelta"/>
            <xs:element name="nextLatitudePointDelta" type="GridLatLonPointDelta"/>
            <xs:element name="nextLongitudePointDelta" type="GridLatLonPointDelta"/>
            <xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>
            <xs:element name="nextAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>
          </xs:sequence>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localGridPointSequence" type="local:GridPointSequence" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

element lrms:GridPointSequence/pointPairCoordinateType
diagram
type lrms:GridPointPairCoordinateType
properties
isRef 0
content simple
source <xs:element name="pointPairCoordinateType" type="GridPointPairCoordinateType"/>

element lrms:GridPointSequence/side
diagram
type lrms:Side
properties
isRef 0
content simple
source <xs:element name="side" type="Side"/>

element lrms:GridPointSequence/startLongitude
diagram
type lrms:GridPointLongitude
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -1440000000
maxInclusive +1440000000
source <xs:element name="startLongitude" type="GridPointLongitude" minOccurs="0"/>

element lrms:GridPointSequence/startLatitude
diagram
type lrms:GridPointLatitude
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -720000000
maxInclusive +720000000
source <xs:element name="startLatitude" type="GridPointLatitude" minOccurs="0"/>

element lrms:GridPointSequence/endLongitude
diagram
type lrms:GridPointLongitude
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -1440000000
maxInclusive +1440000000
source <xs:element name="endLongitude" type="GridPointLongitude" minOccurs="0"/>

element lrms:GridPointSequence/endLatitude
diagram
type lrms:GridPointLatitude
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive -720000000
maxInclusive +720000000
source <xs:element name="endLatitude" type="GridPointLatitude" minOccurs="0"/>

element lrms:GridPointSequence/gridId
diagram
type lrms:Int-index8
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="gridId" type="Int-index8" minOccurs="0"/>

element lrms:GridPointSequence/startLatitudeGridDelta
diagram
type lrms:GridPointLatLonDelta
properties
isRef 0
content simple
facets
maxInclusive 16383
source <xs:element name="startLatitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointSequence/startLongitudeGridDelta
diagram
type lrms:GridPointLatLonDelta
properties
isRef 0
content simple
facets
maxInclusive 16383
source <xs:element name="startLongitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointSequence/pointPairInfo

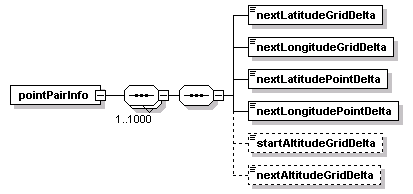

diagram
properties
isRef 0
content complex
children nextLatitudeGridDelta nextLongitudeGridDelta nextLatitudePointDelta nextLongitudePointDelta startAltitudeGridDelta nextAltitudeGridDelta
source <xs:element name="pointPairInfo">
  <xs:complexType>
    <xs:sequence maxOccurs="1000">
      <xs:sequence>
        <xs:element name="nextLatitudeGridDelta" type="GridPointLatLonDelta"/>
        <xs:element name="nextLongitudeGridDelta" type="GridPointLatLonDelta"/>
        <xs:element name="nextLatitudePointDelta" type="GridLatLonPointDelta"/>
        <xs:element name="nextLongitudePointDelta" type="GridLatLonPointDelta"/>
        <xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>
        <xs:element name="nextAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>
      </xs:sequence>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element lrms:GridPointSequence/pointPairInfo/nextLatitudeGridDelta
diagram
type lrms:GridPointLatLonDelta
properties
isRef 0
content simple
facets
maxInclusive 16383
source <xs:element name="nextLatitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointSequence/pointPairInfo/nextLongitudeGridDelta
diagram
type lrms:GridPointLatLonDelta
properties
isRef 0
content simple
facets
maxInclusive 16383
source <xs:element name="nextLongitudeGridDelta" type="GridPointLatLonDelta"/>

element lrms:GridPointSequence/pointPairInfo/nextLatitudePointDelta
diagram
type lrms:GridLatLonPointDelta
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 254
source <xs:element name="nextLatitudePointDelta" type="GridLatLonPointDelta"/>

element lrms:GridPointSequence/pointPairInfo/nextLongitudePointDelta
diagram
type lrms:GridLatLonPointDelta
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 254
source <xs:element name="nextLongitudePointDelta" type="GridLatLonPointDelta"/>

element lrms:GridPointSequence/pointPairInfo/startAltitudeGridDelta
diagram
type lrms:GridAltitudeDelta
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 2048
source <xs:element name="startAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>

element lrms:GridPointSequence/pointPairInfo/nextAltitudeGridDelta
diagram
type lrms:GridAltitudeDelta
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 2048
source <xs:element name="nextAltitudeGridDelta" type="GridAltitudeDelta" minOccurs="0"/>

element lrms:GridPointSequence/localGridPointSequence
diagram
type GridPointSequence
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localGridPointSequence" type="local:GridPointSequence" minOccurs="0"/>
