complexType tcip:CCActivateScheduleAdherence

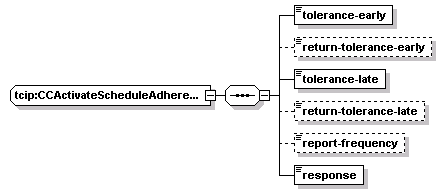

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	tolerance-early return-tolerance-early tolerance-late return-tolerance-late report-frequency response
used by	elements  tcip:CcPTVAdherenceSub/custom-sched-params tcip:CcPTVAlarmLimits/offScheduleReportRates
source	<xs:complexType name="CCActivateScheduleAdherence">   <xs:sequence>     <xs:element name="tolerance-early" type="CC-ScheduleToleranceEarly"/>     <xs:element name="return-tolerance-early" type="CC-ReturnToleranceEarly" minOccurs="0"/>     <xs:element name="tolerance-late" type="CC-ScheduleToleranceLate"/>     <xs:element name="return-tolerance-late" type="CC-ReturnToleranceLate" minOccurs="0"/>     <xs:element name="report-frequency" type="CC-ExceptionFrequencyReport" minOccurs="0"/>     <xs:element name="response" type="CC-MsgResponse"/>     <!-- indicates whether initiation triggers a status/acknowledge response -->   </xs:sequence> </xs:complexType>

element tcip:CCActivateScheduleAdherence/tolerance-early

diagram
type	tcip:CC-ScheduleToleranceEarly
properties	isRef  0 content  simple
source	<xs:element name="tolerance-early" type="CC-ScheduleToleranceEarly"/>

element tcip:CCActivateScheduleAdherence/return-tolerance-early

diagram
type	tcip:CC-ReturnToleranceEarly
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="return-tolerance-early" type="CC-ReturnToleranceEarly" minOccurs="0"/>

element tcip:CCActivateScheduleAdherence/tolerance-late

diagram
type	tcip:CC-ScheduleToleranceLate
properties	isRef  0 content  simple
source	<xs:element name="tolerance-late" type="CC-ScheduleToleranceLate"/>

element tcip:CCActivateScheduleAdherence/return-tolerance-late

diagram
type	tcip:CC-ReturnToleranceLate
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="return-tolerance-late" type="CC-ReturnToleranceLate" minOccurs="0"/>

element tcip:CCActivateScheduleAdherence/report-frequency

diagram
type	tcip:CC-ExceptionFrequencyReport
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="report-frequency" type="CC-ExceptionFrequencyReport" minOccurs="0"/>

element tcip:CCActivateScheduleAdherence/response

diagram
type	tcip:CC-MsgResponse
properties	isRef  0 content  simple
source	<xs:element name="response" type="CC-MsgResponse"/>
