complexType tcip:CCAlarm

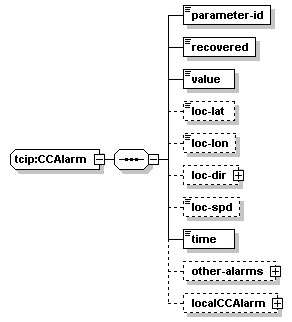

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	parameter-id recovered value loc-lat loc-lon loc-dir loc-spd time other-alarms localCCAlarm
used by	elements  tcip:CCPollResponseContents/activeAlarms/activeAlarm tcip:CcPTVehicleAlarm/alarms/alarm tcip:CCPTVAlarm/alarm-info
source	<xs:complexType name="CCAlarm">   <xs:sequence>     <xs:element name="parameter-id" type="OB-PID"/>     <xs:element name="recovered" type="CPT-Boolean"/>     <xs:element name="value" type="OB-Parameter"/>     <xs:element name="loc-lat" type="lrms:Latitude" minOccurs="0"/>     <xs:element name="loc-lon" type="lrms:Longitude" minOccurs="0"/>     <xs:element name="loc-dir" type="lrms:Angle" minOccurs="0"/>     <xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed" minOccurs="0"/>     <xs:element name="time" type="CPT-DateTime"/>     <xs:element name="other-alarms" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="5">           <xs:element name="other-alarm" type="CC-AlarmCode"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="localCCAlarm" type="local:CCAlarm" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCAlarm/parameter-id

diagram
type	tcip:OB-PID
properties	isRef  0 content  simple
source	<xs:element name="parameter-id" type="OB-PID"/>

element tcip:CCAlarm/recovered

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="recovered" type="CPT-Boolean"/>

element tcip:CCAlarm/value

diagram
type	tcip:OB-Parameter
properties	isRef  0 content  simple
facets	maxLength  16
source	<xs:element name="value" type="OB-Parameter"/>

element tcip:CCAlarm/loc-lat

diagram
type	lrms:Latitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="loc-lat" type="lrms:Latitude" minOccurs="0"/>

element tcip:CCAlarm/loc-lon

diagram
type	lrms:Longitude
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="loc-lon" type="lrms:Longitude" minOccurs="0"/>

element tcip:CCAlarm/loc-dir

diagram
type	lrms:Angle
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	deg rad cdeg
source	<xs:element name="loc-dir" type="lrms:Angle" minOccurs="0"/>

element tcip:CCAlarm/loc-spd

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="loc-spd" type="OB-J1587-VelocityVectorSpeed" minOccurs="0"/>

element tcip:CCAlarm/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="time" type="CPT-DateTime"/>

element tcip:CCAlarm/other-alarms

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	other-alarm
source	<xs:element name="other-alarms" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="5">       <xs:element name="other-alarm" type="CC-AlarmCode"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCAlarm/other-alarms/other-alarm

diagram
type	tcip:CC-AlarmCode
properties	isRef  0 content  simple
source	<xs:element name="other-alarm" type="CC-AlarmCode"/>

element tcip:CCAlarm/localCCAlarm

diagram
type	CCAlarm
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	yourName
source	<xs:element name="localCCAlarm" type="local:CCAlarm" minOccurs="0"/>
