complexType tcip:CCCannedAnnouncementRecord

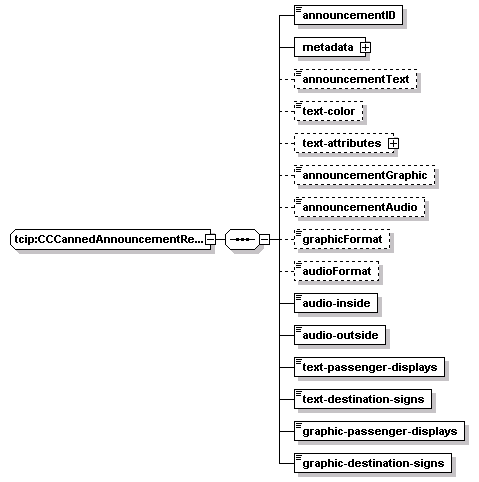

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	announcementID metadata announcementText text-color text-attributes announcementGraphic announcementAudio graphicFormat audioFormat audio-inside audio-outside text-passenger-displays text-destination-signs graphic-passenger-displays graphic-destination-signs
used by	element  tcip:CcAnnouncementInfo/cannedAnnouncements/cannedAnnouncement
source	<xs:complexType name="CCCannedAnnouncementRecord">   <xs:sequence>     <xs:element name="announcementID" type="CC-AnnouncementMsgID"/>     <xs:element name="metadata" type="CPTRowMetaData"/>     <xs:element name="announcementText" type="OB-TextMessage" minOccurs="0"/>     <xs:element name="text-color" type="PI-PIDTextColor" minOccurs="0"/>     <xs:element name="text-attributes" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="5">           <xs:element name="text-attribute" type="PI-PIDTextAttribute"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="announcementGraphic" type="PI-BinaryImageData" minOccurs="0"/>     <xs:element name="announcementAudio" type="PI-BinaryAudioData" minOccurs="0"/>     <xs:element name="graphicFormat" type="PI-GraphicFormat" minOccurs="0"/>     <xs:element name="audioFormat" type="PI-AudioFormat" minOccurs="0"/>     <xs:element name="audio-inside" type="CPT-Boolean"/>     <xs:element name="audio-outside" type="CPT-Boolean"/>     <xs:element name="text-passenger-displays" type="CPT-Boolean"/>     <xs:element name="text-destination-signs" type="CPT-Boolean"/>     <xs:element name="graphic-passenger-displays" type="CPT-Boolean"/>     <xs:element name="graphic-destination-signs" type="CPT-Boolean"/>   </xs:sequence> </xs:complexType>

element tcip:CCCannedAnnouncementRecord/announcementID

diagram
type	tcip:CC-AnnouncementMsgID
properties	isRef  0 content  simple
source	<xs:element name="announcementID" type="CC-AnnouncementMsgID"/>

element tcip:CCCannedAnnouncementRecord/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:CCCannedAnnouncementRecord/announcementText

diagram
type	tcip:OB-TextMessage
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  0 maxLength  255
source	<xs:element name="announcementText" type="OB-TextMessage" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/text-color

diagram
type	tcip:PI-PIDTextColor
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="text-color" type="PI-PIDTextColor" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/text-attributes

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	text-attribute
source	<xs:element name="text-attributes" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="5">       <xs:element name="text-attribute" type="PI-PIDTextAttribute"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCCannedAnnouncementRecord/text-attributes/text-attribute

diagram
type	tcip:PI-PIDTextAttribute
properties	isRef  0 content  simple
source	<xs:element name="text-attribute" type="PI-PIDTextAttribute"/>

element tcip:CCCannedAnnouncementRecord/announcementGraphic

diagram
type	tcip:PI-BinaryImageData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="announcementGraphic" type="PI-BinaryImageData" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/announcementAudio

diagram
type	tcip:PI-BinaryAudioData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="announcementAudio" type="PI-BinaryAudioData" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/graphicFormat

diagram
type	tcip:PI-GraphicFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="graphicFormat" type="PI-GraphicFormat" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/audioFormat

diagram
type	tcip:PI-AudioFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="audioFormat" type="PI-AudioFormat" minOccurs="0"/>

element tcip:CCCannedAnnouncementRecord/audio-inside

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="audio-inside" type="CPT-Boolean"/>

element tcip:CCCannedAnnouncementRecord/audio-outside

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="audio-outside" type="CPT-Boolean"/>

element tcip:CCCannedAnnouncementRecord/text-passenger-displays

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="text-passenger-displays" type="CPT-Boolean"/>

element tcip:CCCannedAnnouncementRecord/text-destination-signs

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="text-destination-signs" type="CPT-Boolean"/>

element tcip:CCCannedAnnouncementRecord/graphic-passenger-displays

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="graphic-passenger-displays" type="CPT-Boolean"/>

element tcip:CCCannedAnnouncementRecord/graphic-destination-signs

diagram
type	tcip:CPT-Boolean
properties	isRef  0 content  simple
source	<xs:element name="graphic-destination-signs" type="CPT-Boolean"/>
